EMT conduit sizes: 1/2 to 2 in OD and wall (ANSI C80.3)

What is the outside diameter of 1/2 inch EMT conduit? · Standard part · basis: ANSI C80.3 electrical metallic tubing: outside diameter and nominal wall

Also called: emt conduit od, 1/2 emt outside diameter, emt dimensions chart, 3/4 emt od

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
6 in table

Notes

  • 10 ft sticks and 12, 24, 36 in cuts; couplings and fittings not drawn.

EMT conduit sizes: 1/2 to 2 in OD and wall size chart

trade sizeod (in)wall (in)od (mm)id (mm)
1/20.7060.04217.9315.8
3/40.9220.04923.4220.93
11.1630.05729.5426.64
1-1/41.510.06538.3535.05
1-1/21.740.06544.240.89
22.1970.06555.852.5

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
EMT OD1/2 in Ø17.93 (0.706 in)EMT coupling / connector socketslideemt-1-2in*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

NEMAANSI C80.3 Steel electrical metallic tubing (EMT)standardNEMA; dimensions are facts verify

Free files

★ Free files 24 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
emt-1-2in-12in1/2 in EMT, 12in: OD 0.706 in × 0.042 in wall (17.93 × 1.07 mm)STEP · STL
emt-1-2in-24in1/2 in EMT, 24in: OD 0.706 in × 0.042 in wall (17.93 × 1.07 mm)STEP · STL
emt-1-2in-36in1/2 in EMT, 36in: OD 0.706 in × 0.042 in wall (17.93 × 1.07 mm)STEP · STL
emt-1-2in-10ft1/2 in EMT, 10ft: OD 0.706 in × 0.042 in wall (17.93 × 1.07 mm)STEP · STL
emt-3-4in-12in3/4 in EMT, 12in: OD 0.922 in × 0.049 in wall (23.42 × 1.24 mm)STEP · STL
emt-3-4in-24in3/4 in EMT, 24in: OD 0.922 in × 0.049 in wall (23.42 × 1.24 mm)STEP · STL
emt-3-4in-36in3/4 in EMT, 36in: OD 0.922 in × 0.049 in wall (23.42 × 1.24 mm)STEP · STL
emt-3-4in-10ft3/4 in EMT, 10ft: OD 0.922 in × 0.049 in wall (23.42 × 1.24 mm)STEP · STL
emt-1in-12in1 in EMT, 12in: OD 1.163 in × 0.057 in wall (29.54 × 1.45 mm)STEP · STL
emt-1in-24in1 in EMT, 24in: OD 1.163 in × 0.057 in wall (29.54 × 1.45 mm)STEP · STL
emt-1in-36in1 in EMT, 36in: OD 1.163 in × 0.057 in wall (29.54 × 1.45 mm)STEP · STL
emt-1in-10ft1 in EMT, 10ft: OD 1.163 in × 0.057 in wall (29.54 × 1.45 mm)STEP · STL
emt-1-1-4in-12in1-1/4 in EMT, 12in: OD 1.51 in × 0.065 in wall (38.35 × 1.65 mm)STEP · STL
emt-1-1-4in-24in1-1/4 in EMT, 24in: OD 1.51 in × 0.065 in wall (38.35 × 1.65 mm)STEP · STL
emt-1-1-4in-36in1-1/4 in EMT, 36in: OD 1.51 in × 0.065 in wall (38.35 × 1.65 mm)STEP · STL
emt-1-1-4in-10ft1-1/4 in EMT, 10ft: OD 1.51 in × 0.065 in wall (38.35 × 1.65 mm)STEP · STL
emt-1-1-2in-12in1-1/2 in EMT, 12in: OD 1.74 in × 0.065 in wall (44.20 × 1.65 mm)STEP · STL
emt-1-1-2in-24in1-1/2 in EMT, 24in: OD 1.74 in × 0.065 in wall (44.20 × 1.65 mm)STEP · STL
emt-1-1-2in-36in1-1/2 in EMT, 36in: OD 1.74 in × 0.065 in wall (44.20 × 1.65 mm)STEP · STL
emt-1-1-2in-10ft1-1/2 in EMT, 10ft: OD 1.74 in × 0.065 in wall (44.20 × 1.65 mm)STEP · STL
emt-2in-12in2 in EMT, 12in: OD 2.197 in × 0.065 in wall (55.80 × 1.65 mm)STEP · STL
emt-2in-24in2 in EMT, 24in: OD 2.197 in × 0.065 in wall (55.80 × 1.65 mm)STEP · STL
emt-2in-36in2 in EMT, 36in: OD 2.197 in × 0.065 in wall (55.80 × 1.65 mm)STEP · STL
emt-2in-10ft2 in EMT, 10ft: OD 2.197 in × 0.065 in wall (55.80 × 1.65 mm)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=emt-conduit

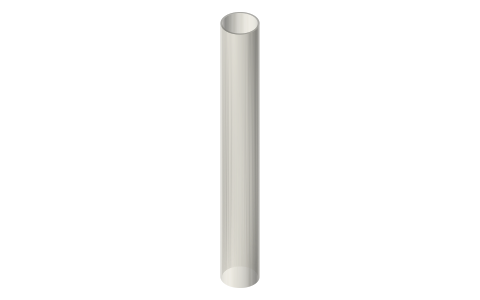

EMT conduit sizes: 1/2 to 2 in OD and wall (ANSI C80.3), isometric render of a generated part
Render of emt-1-1-4in-12in from the free STEP; not to scale.

Fits with

Questions

1/2 in EMT OD?

0.706 in (17.93 mm).
