Optical encoder disc Ø60, 30 slots, Ø5 bore

How many slots for an RPM encoder disc, and what size? · Hardware · basis: Slotted disc for a transmissive IR slot sensor (TCST2103, 3.1 mm gap): Ø60 × 1.5, 30 slots on a 48 mm circle, Ø5 bore

Also called: encoder disc stl, rpm encoder wheel, slotted disc ir sensor, 30 slot encoder, tcst2103 encoder disc

Used in Long Earth Society builds. Running temperature and RPM measurements

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
5 in table

Notes

  • The disc is Ø60 × 1.5 mm with a Ø5 bore for a Ø5 shaft.
  • It has 30 radial slots, each 2 mm wide × 6 mm long, centred on a Ø48 circle (from r 21 to r 27), 12° apart: 30 pulses per revolution.
  • At 1.5 mm thick it passes through the 3.1 mm gap of a TCST2103-type IR slot sensor.
  • Rpm = pulses per second × 60 / 30.

Optical encoder disc Ø60, 30 slots, Ø5 bore size chart

featuresize
discØ60 × 1.5
boreØ5
slots30 × 2 wide × 6 radial
slot circleØ48
pitch12°

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
encoder boreØ5Ø5 shaftslideencoder-disc-*
encoder slots30 × 2 wide × 6 radialIR slot sensor (3.1 gap)designedencoder-disc-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaThermocouplewebCC BY-SA 4.0 (text)
WikipediaHall effect sensorwebCC BY-SA 4.0 (text)
WikipediaDial indicatorwebCC BY-SA 4.0 (text)
Analog DevicesDS18B20 datasheetPDFManufacturer datasheet
Long Earth SocietyEngine and rig buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
encoder-disc-30-slots-60mmoptical encoder disc Ø60 × 1.5, 30 slots 2 wide × 6 radial on a 48 mm circle, Ø5 bore (for an IR slot sensor)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=encoder-disc

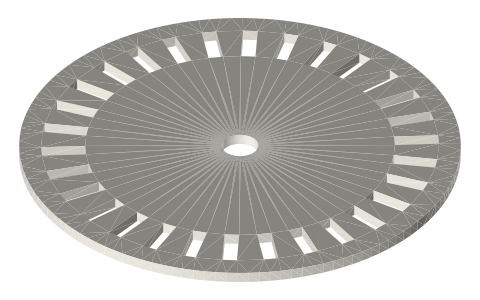

Optical encoder disc Ø60, 30 slots, Ø5 bore, isometric render of a generated part
Render of encoder-disc-30-slots-60mm from the free STEP; not to scale.

You might also need

Questions

How do I measure RPM with an encoder disc?

Count slot pulses from the IR slot sensor: rpm = pulses per second × 60 / 30 for this 30-slot disc.

Will a 1.5 mm disc fit an IR slot sensor?

Yes; the TCST2103 gap is 3.1 mm.
