Energy drink can sizes: 16 oz (Monster) Ø66 × 157.2 mm, 12 oz sleek (Celsius) Ø58 × 156.6

What are the dimensions of a Monster Energy can? · Standard part · basis: Crown and Ardagh can specifications (the brands publish none)

Also called: monster can dimensions, monster energy can size, 16 oz can dimensions, celsius can size, slim can holder

Exact dimensions. True size, with no tolerance added.

sizes
3 in table

Notes

  • 16 oz / 473 ml standard can (the format Monster and most energy drinks use): body Ø66 mm (211), 157.2 mm tall, necked to a 202 end (Ø53).
  • 12 oz sleek can (the format Celsius and many seltzers use): Ø58 mm (204.5), 156.6 tall. A regular 12 oz soda can is Ø66 × 122.2.
  • Can codes: first digit whole inches, next two sixteenths (211 = 2-11/16 in); makers list the body as 66 mm.
  • 24 oz cans: end size 206 is listed but the body and height are not published.

Energy drink can sizes: 16 oz (Monster) Ø66 × 157.2 mm, 12 oz sleek… size chart

canbody dia (mm)height (mm)end
16 oz / 473 ml (Monster format)66.0157.23202
12 oz sleek (Celsius format)58.0156.59202
12 oz standard66.0122.22202

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Crown (can maker)16 oz / 473 ml standard canwebPublisher's page; dimensions are facts
Crown (can maker)12 oz / 355 ml sleek canwebPublisher's page; dimensions are facts
Crown (can maker)12 oz / 355 ml standard canwebPublisher's page; dimensions are facts
G.W. Kent (Ardagh spec)16 oz standard can, 6.190 in tallwebPublisher's page; dimensions are facts

Free files

★ Free files 4 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
can-16oz-66x157.216 oz / 473 ml can envelope Ø66 × 157.2 (Monster format)STEP · STL
can-12oz-sleek-58x156.612 oz sleek can envelope Ø58 × 156.6 (Celsius format)STEP · STL
can-sleeve-16ozHolder / sleeve for a 16 oz can (Ø67 inside, 94 tall)STEP · STL
can-sleeve-12oz-sleekHolder / sleeve for a 12 oz sleek can (Ø59 inside, 94 tall)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=energy-drink-cans

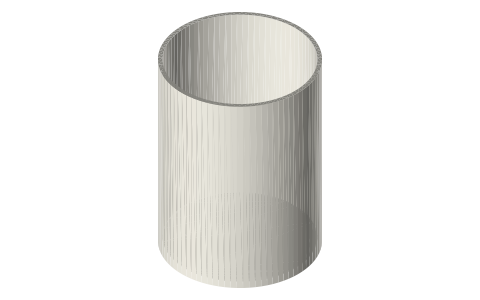

Energy drink can sizes: 16 oz (Monster) Ø66 × 157.2 mm, 12 oz sleek (Celsius) Ø58 × 156.6, isometric render of a generated part
Render of can-sleeve-16oz from the free STEP; not to scale.

Fits with

Questions

How big is a Monster Energy can?

A 16 oz can: 66 mm across, 157.2 mm tall.

How big is a Celsius can?

The 12 oz sleek can: 58 mm across, 156.6 mm tall.
