Escape wheel, 30 teeth, Ø50, club-free pointed teeth raked forward

What does an escape wheel look like? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: escape wheel, clock escape wheel, escapement wheel, rueda de escape, Hemmungsrad

Exact dimensions. True size, with no tolerance added.

length
50.0 mm
width
49.73 mm
height
3.0 mm

Notes

  • Ø50 × 3 escape wheel with 30 pointed teeth 2.5 mm deep (root Ø40), the locking face of each tooth raked 3° forward so only the tip touches a pallet; Ø5 bore. It turns anticlockwise (seen from the front) under the drive weight or spring.

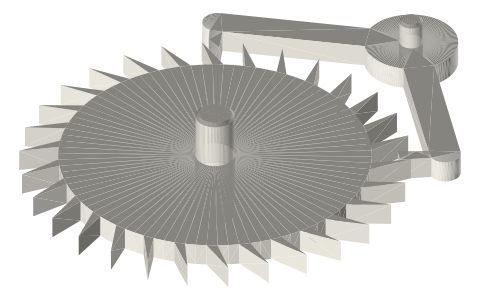

  • Works with the dead-beat (Graham) anchor and the recoil anchor on this site: pallets span 7½ teeth with the anchor pivot 35.36 mm above the wheel centre.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Escape wheel, 30 teeth, Ø50, club-free pointed teeth raked forward size chart

dimensionvalue
teeth30
tip Ø50 mm
root Ø40 mm
thickness3 mm
boreØ5

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 289: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
escape-wheel-30t-d50wheel, z 0..3, a tooth tip on +XSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=escape-wheel-30t-d50

Escape wheel, 30 teeth, Ø50, club-free pointed teeth raked forward, isometric render of a generated part
Render of escape-wheel-30t-d50 from the free STEP; not to scale.

Fits with

Questions

What does an escape wheel look like?

Ø50 × 3 escape wheel with 30 pointed teeth 2.5 mm deep (root Ø40), the locking face of each tooth raked 3° forward so only the tip touches a pallet; Ø5 bore. It turns anticlockwise (seen from the front) under the drive weight or spring.
