Dead-beat (Graham) escapement: escape wheel and anchor

How does a dead-beat escapement work? · Hardware · basis: Xem Studio design following Brown No. 289 (1868)

Also called: deadbeat escapement, anchor escapement, clock escapement, pendulum escapement, graham escapement, escape de áncora sin retroceso (Graham), Grahamhemmung (ruhende Ankerhemmung)

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: pivot height; stays the same: escape wheel, anchor span, beats.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • An anchor rocked by a pendulum lets the escape wheel advance one tooth every two beats: a tooth is locked on one pallet, released as the anchor swings, gives the pallet a small push across its slanted impulse face, and the wheel drops until the other pallet catches the next tooth.
  • Dead-beat (Graham, 1715): the locking faces are arcs about the anchor pivot, so while a tooth rests on them the wheel stands perfectly still (the seconds hand does not recoil) and the pendulum swings freer — the escapement of precision regulators.
  • Drawn with a tooth tip resting on the entry pallet's locking face (contact only, wheel turned -4.83°). Brown's No. 289.

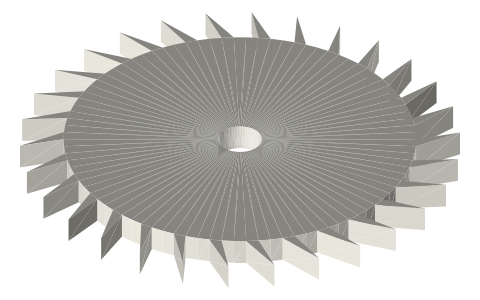

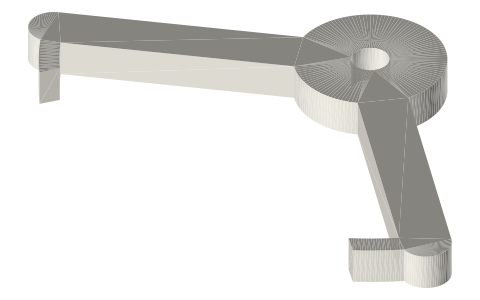

  • Parts (each has its own page): escape-wheel-30t-d50, deadbeat-anchor-for-30t-d50, dowel-pins-metric.
  • Brown's movement No. 289 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Dead-beat (Graham) escapement: escape wheel and anchor size chart

parametervalue
escape wheel30 T, Ø50
anchor span7½ teeth
pivot height35.36 mm
beats2 per tooth (60 per wheel turn)
typedead-beat

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 289: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
deadbeat-escapement-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=deadbeat-escapement-mechanism

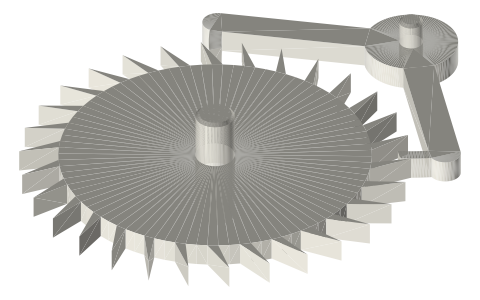

Dead-beat (Graham) escapement: escape wheel and anchor, isometric render of a generated part
Render of deadbeat-escapement-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a dead-beat escapement work?

An anchor rocked by a pendulum lets the escape wheel advance one tooth every two beats: a tooth is locked on one pallet, released as the anchor swings, gives the pallet a small push across its slanted impulse face, and the wheel drops until the other pallet catches the next tooth.
