Two speeds from two belts on fast and loose pulleys
How do fast and loose pulleys give two speeds? · Hardware · basis: Xem Studio design following Brown No. 60 (1868)
Also called: fast and loose pulleys, two speed belt drive, loose pulley, belt shifter, poleas fija y loca (dos velocidades), Fest- und Losscheibe (zwei Gänge)
Exact dimensions. True size, with no tolerance added.
- sizes
- 5 in table
Notes
- Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: upper pulleys, lower pulleys, belts; stays the same: speeds; step to the nearest standard size (and redraw the hole or pocket it fits): shafts.
- Resize: Speed ratio = driven Ø / driver Ø (or driven / driver teeth), independent of size. Timing belts and chain come in fixed pitches: keep the pitch and change the tooth counts, or step to the next standard pitch.
- Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
- The upper shaft carries a wide Ø80 and a wide Ø40 pulley; each drives its own belt. Below, each belt can run on a fast pulley (keyed to the shaft) or on a loose one beside it (free to turn). With belt 1 on its fast Ø40 the lower shaft runs at 2 × upper speed; shift belt 1 to its loose pulley and belt 2 onto its fast Ø80 and it runs at 0.5 ×.
- Drawn in the fast (2 : 1) setting: belt 1 on the fast Ø40, belt 2 idling on the loose Ø80. Both belts are the same length, 471.36 mm (Ø40 + Ø80 at 140 mm). Pulleys plain (no flanges) so the belts can be shifted; upper faces 34 mm wide for both positions.
- Brown's No. 60. Only one belt may be on a fast pulley at a time.

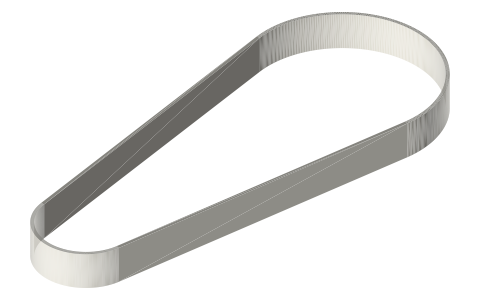

- Parts (each has its own page): plain-flat-pulley-80x34, plain-flat-pulley-40x34, plain-flat-pulley-40x16, plain-flat-pulley-80x16, flat-belt-16x1-5-pulleys-40-80-c140-open, linear-shafts-h6.
- Brown's movement No. 60 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.
Two speeds from two belts on fast and loose pulleys size chart
| parameter | value |
|---|---|
| upper pulleys | Ø80 × 34 and Ø40 × 34 (fast) |
| lower pulleys | Ø40 fast + loose, Ø80 loose + fast, × 16 |
| speeds | 2 : 1 and 1 : 2 |
| belts | 2 × 16 × 1.5, 471.36 mm |
| shafts | Ø8, 140 mm apart |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 60: figure, his text and an animation | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| fast-and-loose-pulleys-two-speed-mechanism-assembly | Assembled mechanism, all parts placed at one pose (STEP keeps each part separate) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=fast-and-loose-pulleys-two-speed-mechanism

Fits with






Questions
How do fast and loose pulleys give two speeds?
The upper shaft carries a wide Ø80 and a wide Ø40 pulley; each drives its own belt. Below, each belt can run on a fast pulley (keyed to the shaft) or on a loose one beside it (free to turn). With belt 1 on its fast Ø40 the lower shaft runs at 2 × upper speed; shift belt 1 to its loose pulley and belt 2 onto its fast Ø80 and it runs at 0.5 ×.
