Flight controller and ESC stack sizes: 30.5×30.5 M3, 20×20, 25.5 / 26 whoop, 16×16 nano, wing FCs, Pixhawk

What size is a 30.5x30.5 flight controller? · Modern device · basis: Betaflight board wiki, PX4 docs, maker and retailer spec pages (Matek, Holybro and Hitec sites were unreachable; their figures are from dealers)

Also called: 30.5x30.5 flight controller, 20x20 stack, whoop fc mounting, flight controller hole spacing

Exact dimensions. True size, with no tolerance added.

sizes
9 in table

Notes

  • Hole patterns: 30.5 × 30.5 M3 (5 in builds; boards about 36–42 mm square), 20 × 20 M2/M3 (3–4 in; boards about 30 mm), 25.5 × 25.5 (whoop AIO, Happymodel) or 26 × 26 (BetaFPV), 16 × 16 M2 (nano, boards about 22 mm).
  • Stacks usually sit on soft grommets: the plates here carry clearance holes (M2 2.2, M3 3.2) for the screw, not the grommet.
  • Wing: Matek F405-WTE 44 × 29 × 12.7 mm, holes 25 × 25 Ø2 (dealer figures). Pixhawk 6C 84.8 × 44 × 12.4, 59.3 g (PX4 docs; mount pattern not published there). Cube Orange core 38.25 × 38.25 × 22.3.

Flight controller and ESC stack sizes: 30.5×30.5 M3, 20×20, 25.5 /… size chart

boardoutline (mm)pattern (mm)weight (g)
SpeedyBee F405 V4 (30.5)41.6 × 39.4 × 7.830.5 × 30.510.5
SpeedyBee F405 Mini (20)30 × 32 × 7.820 × 20 (Ø3.5 grommet)9.6
SpeedyBee BLS 35A Mini ESC35 × 35 × 5.520 × 207.2
Happymodel X12 AIO (whoop)30 × 30 × 825.5 × 25.55.1
BetaFPV F4 1S 5A AIO30 × 3026 × 26None
Flywoo GOKU GN405 Nano22 × 2216 × 162.3
Matek F405-WTE (wing)44 × 29 × 12.725 × 25 Ø222
Pixhawk 6C84.8 × 44 × 12.4None59.3
Cube Orange (core)38.25 × 38.25 × 22.3NoneNone

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Betaflight wikiSpeedyBee F405 V4webPublisher's page; dimensions are facts
Oscar LiangSpeedyBee F405 Mini stackwebPublisher's page; dimensions are facts
Unmanned Tech (Happymodel spec)X12 AIOwebPublisher's page; dimensions are facts
BetaFPVF4 1S 5A AIOwebPublisher's page; dimensions are facts
GetFPV (Flywoo spec)GOKU GN405 NanowebPublisher's page; dimensions are facts
Unmanned Tech (Matek spec)F405-WTEwebPublisher's page; dimensions are facts
PX4 docsPixhawk 6CwebPublisher's page; dimensions are facts

Free files

★ Free files 5 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
stack-plate-16x16-m2Stack mounting plate 16×16 M2, 2.5 mm, open centreSTEP · STL
stack-plate-20x20-m2Stack mounting plate 20×20 M2, 2.5 mm, open centreSTEP · STL
stack-plate-25.5x25.5-m2Stack mounting plate 25.5×25.5 M2, 2.5 mm, open centreSTEP · STL
stack-plate-26x26-m2Stack mounting plate 26×26 M2, 2.5 mm, open centreSTEP · STL
stack-plate-30.5x30.5-m3Stack mounting plate 30.5×30.5 M3, 2.5 mm, open centreSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=fc-esc-stack-mounts

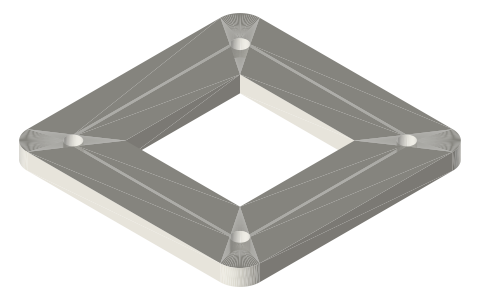

Flight controller and ESC stack sizes: 30.5×30.5 M3, 20×20, 25.5 / 26 whoop, 16×16 nano, wing FCs, Pixhawk, isometric render of a generated part
Render of stack-plate-25.5x25.5-m2 from the free STEP; not to scale.

Fits with

Questions

What screws for a 30.5 × 30.5 stack?

M3, usually through soft grommets; 20 × 20 stacks use M2 or M3, nano 16 × 16 uses M2.
