Feather key 2 × 2 × 30

What is a feather key? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: feather key, sliding key, chaveta deslizante, Gleitfeder

Exact dimensions. True size, with no tolerance added.

length
2.0 mm
width
2.0 mm
height
30.0 mm

Notes

  • 2 × 2 × 30 mm key fixed in the shaft's keyway (1 mm deep) and standing 1 mm proud: the sliding part's keyway runs along it.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Feather key 2 × 2 × 30 size chart

dimensionvalue
key2 × 2 × 30

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 47: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
feather-key-2x2x30key, in place for a Ø8 shaft on +Y, z 0..30STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=feather-key-2x2x30

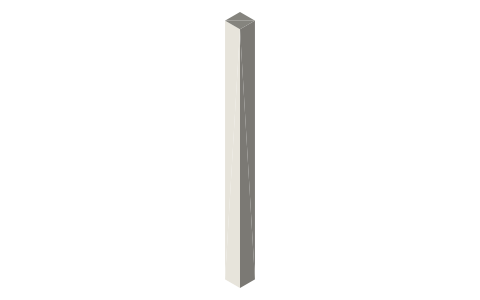

Feather key 2 × 2 × 30, isometric render of a generated part
Render of feather-key-2x2x30 from the free STEP; not to scale.

Fits with

Questions

What is a feather key?

2 × 2 × 30 mm key fixed in the shaft's keyway (1 mm deep) and standing 1 mm proud: the sliding part's keyway runs along it.
