Pin (stud) clutch: studs on a sliding disc enter holes in a fixed disc

How does a pin clutch couple two shafts? · Hardware · basis: Xem Studio design following Brown No. 52 (1868)

Also called: pin clutch, stud clutch, positive clutch, claw coupling, embrague de pernos, Bolzenkupplung

Exact dimensions. True size, with no tolerance added.

sizes
3 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: discs, studs; step to the nearest standard size (and redraw the hole or pocket it fits): shafts.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Two shafts end to end: one carries a disc with holes, the other a disc with studs that slides on a feather key. Pushed together, the studs enter the holes and the shafts turn as one; pulled back, they are free.
  • Here Ø50 × 8 discs, four Ø6 studs on a 16 mm radius, Ø8 shafts with a 2 × 2 feather key; drawn engaged (studs fully home). Engage it only at rest or slow speed: it is a positive clutch, with no slip.
  • Brown's No. 52.

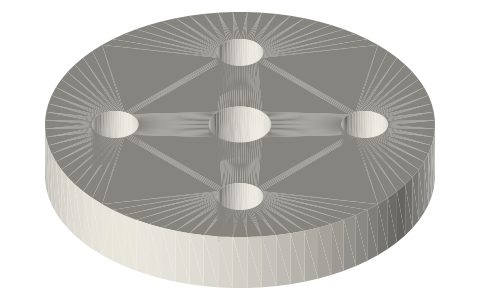

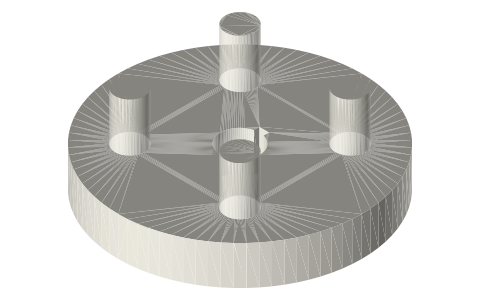

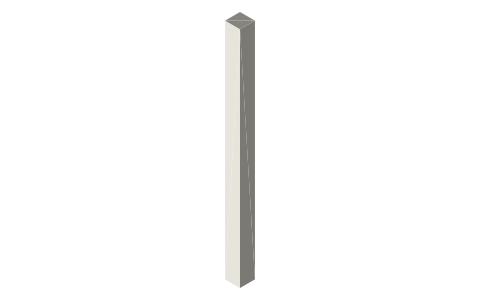

  • Parts (each has its own page): pin-clutch-disc-4-holes-50, pin-clutch-disc-4-studs-50-keyed, keyed-shaft-8x100-key2, feather-key-2x2x30, linear-shafts-h6.
  • Brown's movement No. 52 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Pin (stud) clutch: studs on a sliding disc enter holes in a fixed disc size chart

parametervalue
discs2 × Ø50 × 8
studs4 × Ø6 × 10 on R16
shaftsØ8, key 2 × 2

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 52: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
pin-clutch-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=pin-clutch-mechanism

Pin (stud) clutch: studs on a sliding disc enter holes in a fixed disc, isometric render of a generated part
Render of pin-clutch-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a pin clutch couple two shafts?

Two shafts end to end: one carries a disc with holes, the other a disc with studs that slides on a feather key. Pushed together, the studs enter the holes and the shafts turn as one; pulled back, they are free.
