Flat belt 12 × 1.5 for the right-angle guide-pulley drive (loop drawn on the pulleys)

How is a belt led round a right angle by guide pulleys? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: flat belt, quarter turn belt, correa plana, Flachriemen

Exact dimensions. True size, with no tolerance added.

length
50.61 mm
width
217.14 mm
height
50.61 mm

Notes

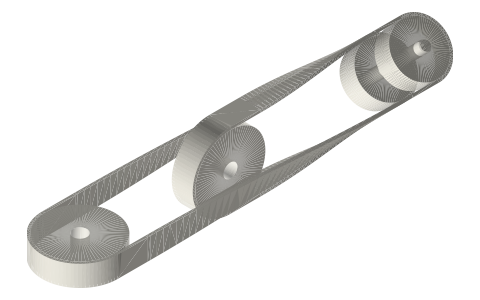

  • 12 × 1.5 mm flat belt, inside length 774.52 mm, joining two Ø40 pulleys on shafts at right angles (80 mm apart along the common perpendicular) through two Ø28.28 guide pulleys 100 mm beyond; each of its four strands turns 45° about its own length.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Flat belt 12 × 1.5 for the right-angle guide-pulley drive size chart

dimensionvalue
width × thickness12 × 1.5 mm
inside length774.52 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 3: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
flat-belt-12x1-5-right-angle-guide-drivebelt loopSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=flat-belt-12x1-5-right-angle-guide-drive

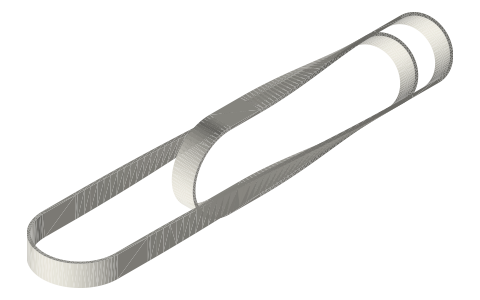

Flat belt 12 × 1.5 for the right-angle guide-pulley drive (loop drawn on the pulleys), isometric render of a generated part
Render of flat-belt-12x1-5-right-angle-guide-drive from the free STEP; not to scale.

Fits with

Questions

How is a belt led round a right angle by guide pulleys?

12 × 1.5 mm flat belt, inside length 774.52 mm, joining two Ø40 pulleys on shafts at right angles (80 mm apart along the common perpendicular) through two Ø28.28 guide pulleys 100 mm beyond; each of its four strands turns 45° about its own length.
