Belt drive between shafts at right angles with two guide pulleys
How do guide pulleys carry a belt round a right angle? · Hardware · basis: Xem Studio design following Brown No. 3 (1868)
Also called: guide pulley belt, right angle belt drive, mule pulley drive, quarter turn belt with idlers, transmisión en ángulo recto con poleas guía, Winkeltrieb mit Leitrollen
Exact dimensions. True size, with no tolerance added.
- sizes
- 4 in table
Notes
- Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, stays the same: pulleys, ratio; step to the nearest standard size (and redraw the hole or pocket it fits): guide pulleys, belt.
- Resize: Speed ratio = driven Ø / driver Ø (or driven / driver teeth), independent of size. Timing belts and chain come in fixed pitches: keep the pitch and change the tooth counts, or step to the next standard pitch.
- Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
- Two pulleys on shafts at right angles, joined by one belt led over two guide pulleys on a single inclined shaft. Each strand lies in the mid-planes of both pulleys it joins, so the belt runs in either direction without leaving the faces.
- Here two Ø40 pulleys sit 80 mm apart on the common perpendicular, their belt lines all parallel; the guides (Ø28.28 = 20√2) are 100 mm beyond, on a shaft at 45° to both. Each strand twists 45°; belt 12 × 1.5, inside length 774.52 mm.
- Brown's No. 3 (guide pulleys carrying the belt between shafts at right angles); No. 4 does it with the belt alone, working one way only.

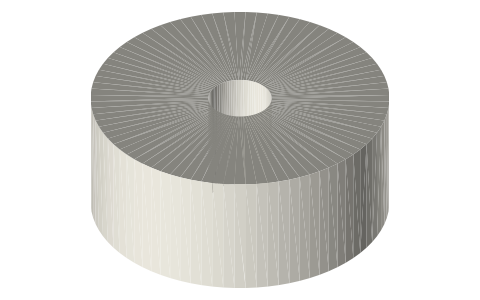

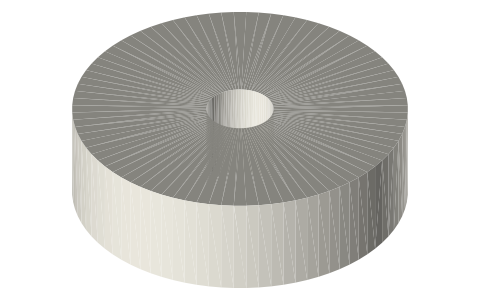

- Parts (each has its own page): plain-flat-pulley-40x12, plain-flat-pulley-28-28x12-bore6, flat-belt-12x1-5-right-angle-guide-drive, dowel-pins-metric.
- Brown's movement No. 3 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.
Belt drive between shafts at right angles with two guide pulleys size chart
| parameter | value |
|---|---|
| pulleys | 2 × Ø40 × 12, shafts at 90° |
| guide pulleys | 2 × Ø28.28 on one shaft at 45° |
| ratio | 1 : 1 |
| belt | 12 × 1.5, 774.52 mm |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 3: figure, his text and an animation | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| guide-pulley-right-angle-belt-mechanism-assembly | Assembled mechanism, all parts placed at one pose (STEP keeps each part separate) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=guide-pulley-right-angle-belt-mechanism

Fits with




Questions
How do guide pulleys carry a belt round a right angle?
Two pulleys on shafts at right angles, joined by one belt led over two guide pulleys on a single inclined shaft. Each strand lies in the mid-planes of both pulleys it joins, so the belt runs in either direction without leaving the faces.
