Guide pulley Ø28.28 × 12, Ø6 bore (plain face)

What size is the guide pulley for a right-angle belt? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: guide pulley, idler pulley, mule pulley, polea guía, Leitrolle

Exact dimensions. True size, with no tolerance added.

length
28.28 mm
width
28.28 mm
height
12.0 mm

Notes

  • Plain Ø28.28 × 12 pulley (Ø6 bore) for the right-angle guide-pulley drive: for two Ø40 pulleys whose belt lines run parallel, the guide's diameter is the distance between the strands it joins, 20√2 = 28.28 mm.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Guide pulley Ø28.28 × 12, Ø6 bore size chart

dimensionvalue
faceØ28.28 × 12 mm
boreØ6

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 3: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
plain-flat-pulley-28-28x12-bore6pulley, axis Z, centred on z = 0STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=plain-flat-pulley-28-28x12-bore6

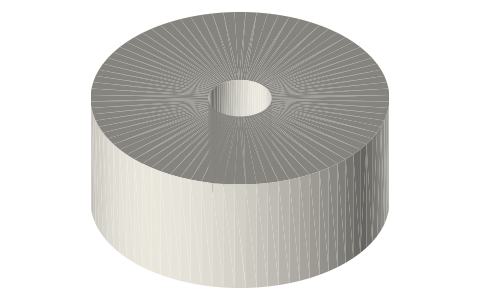

Guide pulley Ø28.28 × 12, Ø6 bore (plain face), isometric render of a generated part
Render of plain-flat-pulley-28-28x12-bore6 from the free STEP; not to scale.

Fits with

Questions

What size is the guide pulley for a right-angle belt?

Plain Ø28.28 × 12 pulley (Ø6 bore) for the right-angle guide-pulley drive: for two Ø40 pulleys whose belt lines run parallel, the guide's diameter is the distance between the strands it joins, 20√2 = 28.28 mm.
