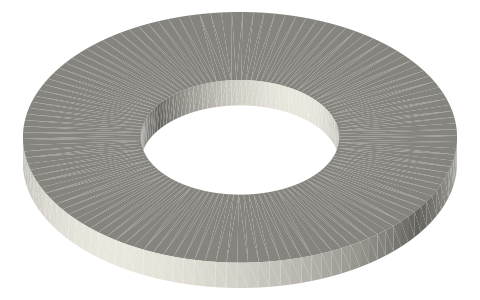

Flat washers, M2–M8 (ISO 7089)
What are the dimensions of M3, M4 and M5 flat washers? · Hardware · basis: ISO 7089 (normal series)
Also called: m3 washer, flat washer, iso 7089, din 125, metric washer size chart, iso 7089 washer dimensions, arandela plana medidas, arruela lisa dimensões
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 7 in table
Notes
- Inner diameter clears the screw; outer diameter is what a counterbore has to accommodate if the washer sits in it.
Flat washers, M2–M8 size chart
| thread | id (mm) | od (mm) | thickness (mm) |
|---|---|---|---|
| M2 | 2.2 | 5 | 0.3 |
| M2.5 | 2.7 | 6 | 0.5 |
| M3 | 3.2 | 7 | 0.5 |
| M4 | 4.3 | 9 | 0.8 |
| M5 | 5.3 | 10 | 1 |
| M6 | 6.4 | 12 | 1.6 |
| M8 | 8.4 | 16 | 1.6 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| bore | ISO 7089 ID (M3 Ø3.2) | screw shank | designed | washer-* |
| OD | ISO 7089 OD (M3 Ø7) | counterbore it sits in | slide | washer-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| McMaster-Carr | Washers (free STEP/IGES/STL per part, for your own design use; no redistribution) | STEP, IGES, STL, PDF | McMaster-Carr site terms: personal design use, no redistribution verify |
| Wikipedia | Washer (hardware) | web | CC BY-SA 4.0 (text) |
Free files
★ Free files 7 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| washer-m2 | ISO 7089 M2 | STEP · STL |
| washer-m2.5 | ISO 7089 M2.5 | STEP · STL |
| washer-m3 | ISO 7089 M3 | STEP · STL |
| washer-m4 | ISO 7089 M4 | STEP · STL |
| washer-m5 | ISO 7089 M5 | STEP · STL |
| washer-m6 | ISO 7089 M6 | STEP · STL |
| washer-m8 | ISO 7089 M8 | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=flat-washers-metric

Fits with
Questions
What is the outer diameter of an M3 washer?
7 mm OD, 3.2 mm ID, 0.5 mm thick (ISO 7089). M4: 9 mm OD; M5: 10 mm OD; M6: 12 mm OD; M8: 16 mm OD.
Do I need a washer under a screw head in a 3D print?
Yes for soft plastics or slotted holes: it spreads the load and stops the head sinking in. Size the counterbore to the washer OD, not the head.
