Output tee, ½ in

What ½ inch tee joins a vertical column? · Hardware · basis: Socket at 1/2 in copper tube OD Ø15.88; side port at the 4 mm OD tube

Also called: fluidyne output tee, fluidyne pump column, 1/2 copper tee 4mm port

Long Earth Society build part. The water-piston demonstrator. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • A Ø4 side port 20 mm up, 12 deep, takes a 4 mm OD tube (fit: press). The pressure swing pumps the water in this column.

Output tee, ½ in size chart

parametervalue
block24 × 24 × 40
boreØ15.88 through
side portØ4 at 20

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
leg socketsØ15.881/2 in copper tube ODsocketall
tuning / side portØ44 mm OD tubepressall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaFluidyne enginewebCC BY-SA 4.0 (text)
C. D. WestLiquid Piston Stirling Engines (1983)book, reports (OSTI)reference / US Gov reports public domain verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
fluidyne-output-tee-1-2inoutput-column teeSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=fluidyne-output-tee

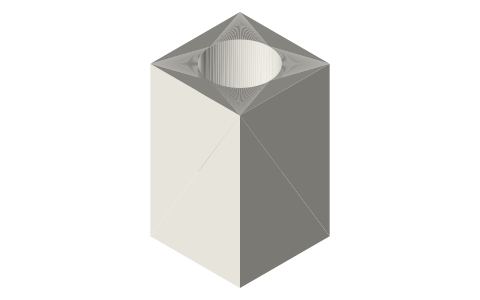

Output tee, ½ in, isometric render of a generated part
Render of fluidyne-output-tee-1-2in from the free STEP; not to scale.

Questions

What does the fluidyne output column do?

The pressure swing from the U-tube pumps the water in it; with check valves it is a pump.
