Ø400 flywheel on a Ø12 shaft

What does a 400 mm flywheel for a 12 mm shaft look like? · Hardware · basis: Exact geometry

Also called: 400 mm flywheel, large stirling flywheel

Long Earth Society build part. Parts of the HTD engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • Rim r 175..200 × 30 wide, 5 web, Ø50 × 40 hub, two M6 grubs. J = 0.104 kg·m² (3.9 kg) at 2.7 g/cm³, 0.305 kg·m² (11.3 kg) at 7.9 g/cm³.
  • On the HTD it hangs outside the seal cap at x 186.5..226.5; a slow flat engine needs the inertia (the speed swing is on the list page).

Ø400 flywheel on a Ø12 shaft size chart

od (mm)rim (mm)web (mm)hub (mm)J kgm2 2.7J kgm2 7.9
400.0175–200 × 305.0Ø50 × 400.1040.305

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
boreØ12 × 40Ø12 shaft, two M6 grubs (drawn Ø6)slideall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
flywheel-400-b12Ø400 flywheel: rim r 175..200 × 30, web 5, hub Ø50 × 40, Ø12 bore, two M6 tapped radial holesSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=flywheel-400-12mm-shaft

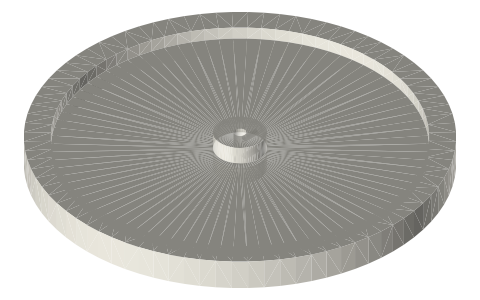

Ø400 flywheel on a Ø12 shaft, isometric render of a generated part
Render of flywheel-400-b12 from the free STEP; not to scale.

Fits with

Questions

How heavy is it?

3.9 kg at 2.7 g/cm³, 11.3 kg at 7.9 g/cm³.
