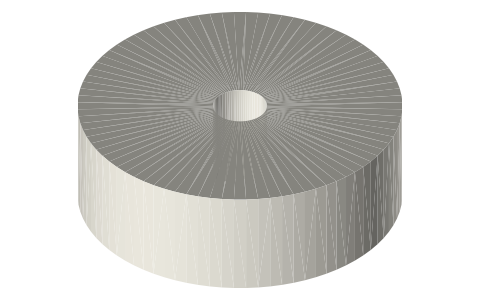

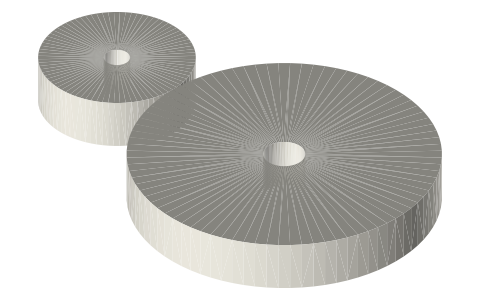

Friction wheel Ø30 × 10, Ø5 bore
What is a Ø30 friction wheel? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: friction wheel, friction drive wheel, rueda de fricción, Reibrad
Exact dimensions. True size, with no tolerance added.
- length
- 30.0 mm
- width
- 30.0 mm
- height
- 10.0 mm
Notes
- Plain Ø30 × 10 mm wheel, Ø5 bore: drives another wheel by rolling contact on its rim (face it with rubber or leather for grip, as Brown says).
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Friction wheel Ø30 × 10, Ø5 bore size chart
| dimension | value |
|---|---|
| diameter | 30 mm |
| width | 10 mm |
| bore | Ø5 |
