Friction wheel Ø60 × 10, Ø8 bore

What is a Ø60 friction wheel? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: friction wheel, friction drive wheel, rueda de fricción, Reibrad

Exact dimensions. True size, with no tolerance added.

length
60.0 mm
width
60.0 mm
height
10.0 mm

Notes

  • Plain Ø60 × 10 mm wheel, Ø8 bore: drives another wheel by rolling contact on its rim (face it with rubber or leather for grip, as Brown says).
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Friction wheel Ø60 × 10, Ø8 bore size chart

dimensionvalue
diameter60 mm
width10 mm
boreØ8

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 32: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
friction-wheel-60x10wheel, axis ZSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=friction-wheel-60x10

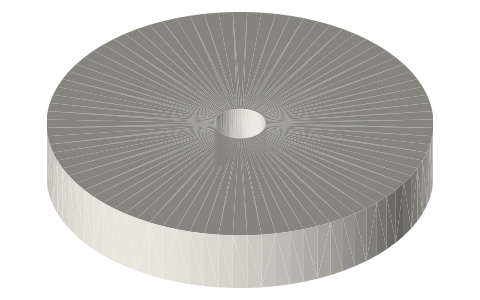

Friction wheel Ø60 × 10, Ø8 bore, isometric render of a generated part
