Gear cluster, module 1: 40 T / 20 T on one Ø14 hub, Ø8 bore

What is a gear cluster? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: gear cluster, cluster gear, compound gear, tren de engranajes solidarios, Zahnradblock

Exact dimensions. True size, with no tolerance added.

length
41.99 mm
width
41.99 mm
height
33.0 mm

Notes

  • Module 1 spur gears of 40, 20 teeth (8 mm faces at z = 16, 41) joined by a Ø14 hub into one part on a Ø8 shaft, a tooth of each on +X; each meshes at 30 mm centres with the pulley-and-gear unit of the complementary size (N₁ + N₂ = 60).
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Gear cluster, module 1: 40 T / 20 T on one Ø14 hub, Ø8 bore size chart

dimensionvalue
gears40 T / 20 T
module1
hubØ14
boreØ8

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 58: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
gear-cluster-m1-40-20-bore8cluster, axis ZSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=gear-cluster-m1-40-20-bore8

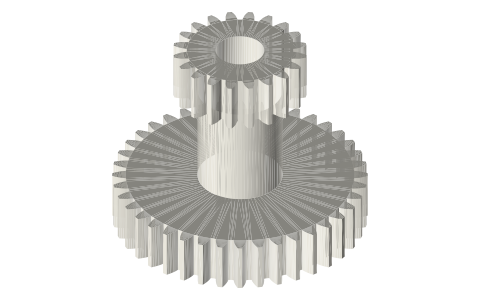

Gear cluster, module 1: 40 T / 20 T on one Ø14 hub, Ø8 bore, isometric render of a generated part
Render of gear-cluster-m1-40-20-bore8 from the free STEP; not to scale.

Fits with

Questions

What is a gear cluster?

Module 1 spur gears of 40, 20 teeth (8 mm faces at z = 16, 41) joined by a Ø14 hub into one part on a Ø8 shaft, a tooth of each on +X; each meshes at 30 mm centres with the pulley-and-gear unit of the complementary size (N₁ + N₂ = 60).
