Two speeds by shifting a belt between pulleys carrying gears (20 / 40 T)

How does shifting a belt between two pulley-gear units give two speeds? · Hardware · basis: Xem Studio design following Brown No. 59 (1868)

Also called: two speed belt gear, belt shifted gears, speed change, dos velocidades con correa y engranajes, Zweigang mit Riemen und Zahnrädern

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: centres; stays the same: units, cluster, speeds.
  • Resize: Gears scale by the module m (pitch Ø = m·z, centre distance = m·(z₁ + z₂)/2): keep the tooth counts so the ratio stays, and choose a standard module (0.5, 0.8, 1, 1.25, 1.5, 2, 2.5, 3).
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Two loose units on the input shaft, each a pulley with a gear (20 and 40 teeth), mesh with a 40 / 20 cluster on the output shaft. The belt on the 20-tooth unit's pulley gives the output half the pulley's speed; shifted onto the 40-tooth unit, twice — the unit not driven just idles.
  • Module 1, 30 mm centres; belt from a wide Ø40 driving pulley 140 mm above, drawn on the 20-tooth unit.
  • Brown's No. 59 (two speeds from a belt shifted between pulleys carrying small and large gears).

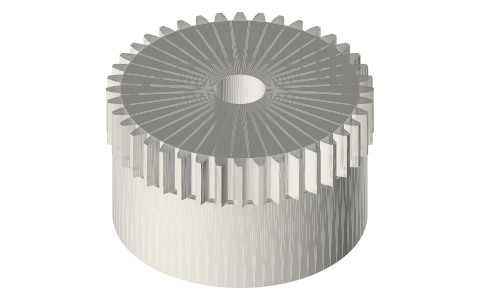

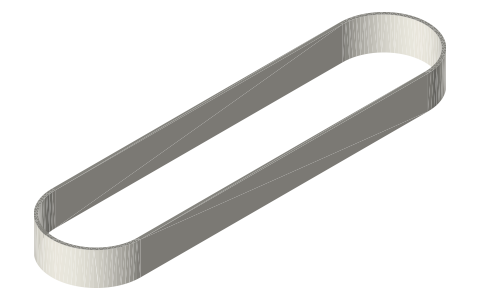

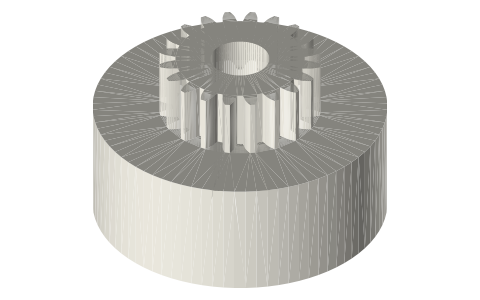

  • Parts (each has its own page): pulley-gear-unit-40-m1-20t-bore8, pulley-gear-unit-40-m1-40t-bore8, gear-cluster-m1-40-20-bore8, plain-flat-pulley-40x66, flat-belt-16x1-5-pulleys-40-40-c140, linear-shafts-h6.
  • Brown's movement No. 59 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Two speeds by shifting a belt between pulleys carrying gears size chart

parametervalue
unitsØ40 pulleys with 20 / 40 T gears
cluster40 / 20 T
speeds0.5, 2 × input
centres30 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 59: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
belt-shifted-gears-two-speed-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=belt-shifted-gears-two-speed-mechanism

Two speeds by shifting a belt between pulleys carrying gears (20 / 40 T), isometric render of a generated part
Render of belt-shifted-gears-two-speed-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does shifting a belt between two pulley-gear units give two speeds?

Two loose units on the input shaft, each a pulley with a gear (20 and 40 teeth), mesh with a 40 / 20 cluster on the output shaft. The belt on the 20-tooth unit's pulley gives the output half the pulley's speed; shifted onto the 40-tooth unit, twice — the unit not driven just idles.
