Gear racks: module 1 (100 mm) and module 2 (150 mm)

Where can I get a 3D printable gear rack? · Hardware · basis: Involute rack, 20° pressure angle, module 1 and 2, matching the spur gears here

Also called: rack and pinion module 1, gear rack stl, 3d printed rack and pinion

Long Earth Society build part. Linear drive with the shelf gears. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • Straight toothed bars that mesh with the module 1 and module 2 spur gears to turn rotation into straight-line travel.
  • One turn of a z-tooth pinion moves the rack π × module × z: 62.8 mm for a 20-tooth module 1 gear.
  • Module 1: 100 mm long, 8 × 8, three Ø3.4 mounting holes. Module 2: 150 mm long, 12 high × 10 wide.

Gear racks: module 1 (100 mm) and module 2 size chart

modulelengthsectiontravel per turn, 20 T pinion
1100 mm8 × 862.8 mm
2150 mm12 × 10125.7 mm

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
mounting holesØ3.4M3 screw clearancedesignedrack-m*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaRack and pinionwebCC BY-SA 4.0 (text)
Long Earth SocietyEngine and rig builds on extrusion framesweb, videoLES site

Free files

★ Free files 2 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
rack-m1-100rack, module 1, 100 mm, 8 high (tip to back) × 8 wide, full-depth ISO 53 teeth (1 mm addendum, 1.25 mm dedendum), three Ø3.4 mounting holes; meshes with the module 1 spur gearsSTEP · STL
rack-m2-150rack, module 2, 150 mm, 12 high (tip to back) × 10 wide, full-depth ISO 53 teeth (2 mm addendum, 2.5 mm dedendum), three Ø3.4 mounting holes; meshes with the module 2 spur gearsSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=gear-racks

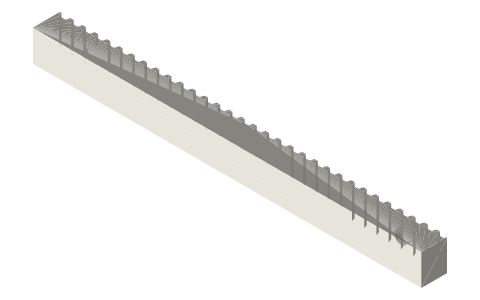

Gear racks: module 1 (100 mm) and module 2 (150 mm), isometric render of a generated part
Render of rack-m1-100 from the free STEP; not to scale.

You might also need

Questions

Which gear meshes with these racks?

Any 20° module 1 or module 2 spur gear; the spur gear page has matching ones.

How far does the rack move per turn?

Π × module × teeth: 62.8 mm for a 20-tooth module 1 pinion.
