Grooved heart cam (face cam) with roller follower

Why put a cam groove in the face of a disc? · Hardware · basis: Xem Studio design following Brown No. 97 (1868)

Also called: grooved cam, face cam, positive cam, heart cam groove, leva de corazón ranurada, Herznutkurve mit Rolle

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: groove centre line, roller, stroke; stays the same: motion.
  • Resize: Scale base radius and lift together: the motion law and the pressure angle stay the same. Raising lift alone steepens the pressure angle and the follower can jam.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.

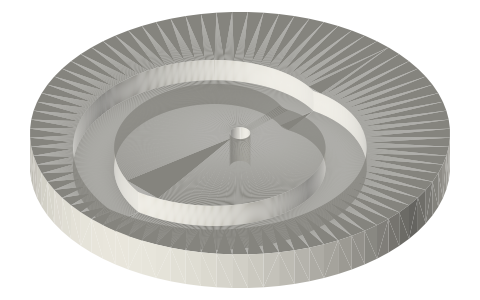

  • A groove cut in the face of a disc holds the follower's roller between two walls, so the cam drives it both out and back (positive drive, no return spring). The heart-shaped centre line gives uniform speed: 20 mm out over half a turn, 20 mm back.
  • Drawn at 60°: roller centre 26.67 mm from the axis, touching one wall (contact only).
  • Brown's No. 97 (grooved heart cam, a variant of No. 96).

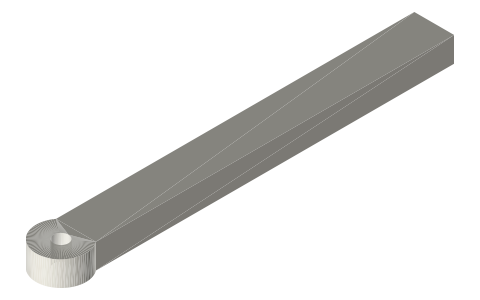

  • Parts (each has its own page): grooved-heart-cam-r20-h20, roller-follower-10, cam-follower-bar-roller-pin, dowel-pins-metric.
  • Brown's movement No. 97 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Grooved heart cam (face cam) with roller follower size chart

parametervalue
groove centre lineR20 → R40 → R20
rollerØ10 × 4 (roller-follower-10)
stroke20 mm
motionuniform velocity

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 97: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
grooved-heart-cam-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=grooved-heart-cam-mechanism

Grooved heart cam (face cam) with roller follower, isometric render of a generated part
Render of grooved-heart-cam-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

Why put a cam groove in the face of a disc?

A groove cut in the face of a disc holds the follower's roller between two walls, so the cam drives it both out and back (positive drive, no return spring). The heart-shaped centre line gives uniform speed: 20 mm out over half a turn, 20 mm back.
