Hand lever, 60 mm, Ø6 hub bore

What is this hand lever for? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: hand lever, pump lever, palanca de mano, Handhebel

Exact dimensions. True size, with no tolerance added.

length
74.0 mm
width
18.0 mm
height
5.0 mm

Notes

  • 5 mm lever with a Ø18 hub bored Ø6 (fixed on the 20-tooth gear's shaft) and a Ø3 hole 60 mm out for a handle or link: rocking it turns the gear to and fro.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Hand lever, 60 mm, Ø6 hub bore size chart

dimensionvalue
length (centres)60 mm
hubØ18, Ø6 bore
end holeØ3
thickness5 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 127: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
hand-lever-60-bore6lever, z 0..5STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=hand-lever-60-bore6

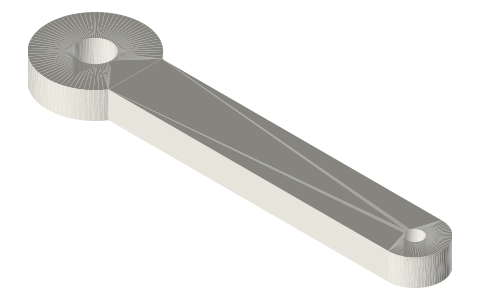

Hand lever, 60 mm, Ø6 hub bore, isometric render of a generated part
Render of hand-lever-60-bore6 from the free STEP; not to scale.

Fits with

Questions

What is this hand lever for?

5 mm lever with a Ø18 hub bored Ø6 (fixed on the 20-tooth gear's shaft) and a Ø3 hole 60 mm out for a handle or link: rocking it turns the gear to and fro.
