Hand crank, pinion and toothed sector pressing through a connecting rod

How does a sector gear give a press its force? · Hardware · basis: Xem Studio design following Brown No. 133 (1868)

Also called: sector gear press, quadrant press, pinion and sector, prensa de sector dentado, Zahnsegmentpresse

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: centre distance, sector arm, rod, lever; stays the same: pinion / sector.
  • Resize: Gears scale by the module m (pitch Ø = m·z, centre distance = m·(z₁ + z₂)/2): keep the tooth counts so the ratio stays, and choose a standard module (0.5, 0.8, 1, 1.25, 1.5, 2, 2.5, 3).
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A hand lever turns a 20-tooth pinion meshing with a 60-tooth sector (3 : 1); an arm on the sector drives the platen down through a connecting rod and a guided block. Force at the platen ≈ 3 × (lever / arm) × hand force = 3 × 60/60 × F, rising as the rod comes into line with the guide.
  • Drawn with the sector turned 12°: the arm end at (12.47, -58.69), the platen block at y = -117.38 in a 6.2 mm slot (contact), the 60 mm catalog link as the rod.
  • Brown's No. 133 (press: crank, pinion, toothed sector and connecting rod to the platen).

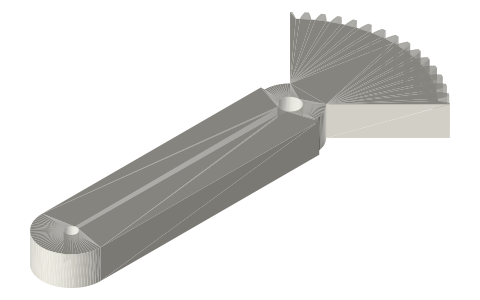

  • Parts (each has its own page): sector-gear-m1-60t-90deg-arm-60-b5, spur-gears-module-1, hand-lever-60-bore6, four-bar-links, slide-block-12x6, slot-guide-plate-90, dowel-pins-metric.
  • Brown's movement No. 133 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Hand crank, pinion and toothed sector pressing through a connecting… size chart

parametervalue
pinion / sector20 T / 60 T, module 1
centre distance40 mm
sector arm60 mm
rod60 mm
lever60 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 133: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
sector-gear-press-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=sector-gear-press-mechanism

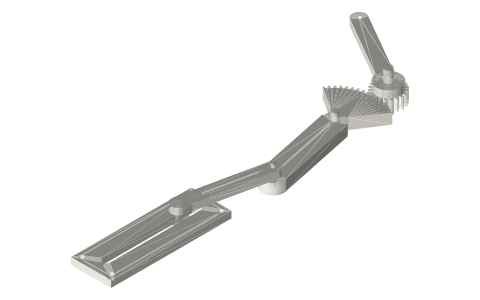

Hand crank, pinion and toothed sector pressing through a connecting rod, isometric render of a generated part
Render of sector-gear-press-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a sector gear give a press its force?

A hand lever turns a 20-tooth pinion meshing with a 60-tooth sector (3 : 1); an arm on the sector drives the platen down through a connecting rod and a guided block. Force at the platen ≈ 3 × (lever / arm) × hand force = 3 × 60/60 × F, rising as the rod comes into line with the guide.
