Slide block 12 × 6.2 mm for a 6.4 mm slot
What is a slide block? · Modern device · basis: Xem Studio drawing
Also called: slide block, slider block slot
Exact dimensions. True size, with no tolerance added.
- sizes
- 2 in table
Notes

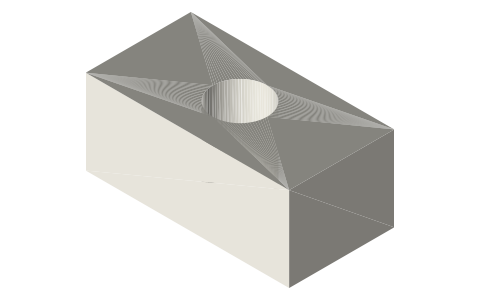

- A 12 × 6.2 × 5 mm block on a Ø3 pin that slides in a 6.4 mm slot (0.1 mm per side clearance, drawn).
Slide block 12 × 6.2 mm for a 6.4 mm slot size chart
| dimension | value |
|---|---|
| size | 12 × 6.2 × 5 mm |
| pin hole | Ø3.2 |
