Elliptic trammel (trammel of Archimedes, ellipsograph)

How does an elliptic trammel draw an ellipse? · Hardware · basis: Xem Studio design following Brown No. 152 (1868)

Also called: elliptic trammel, trammel of archimedes, ellipsograph, ellipse drawing tool, trasmallo de Arquímedes (elipsógrafo), Ellipsenzirkel

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: semi-axis a, semi-axis b.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Two blocks slide in crossed grooves and carry a bar; a point on the bar a distance a from one block and b from the other draws an ellipse with semi-axes a and b.
  • Here the blocks are 40 mm apart on an 80 mm centre-hole link and the pen hole is 40 mm beyond: semi-axes 80 and 40 mm. At 50° the pen is at (51.42, 30.64); x²/80² + y²/40² = 1.
  • Brown's No. 152 (ellipsograph: traverse bar with two studs sliding in grooves of a cross).

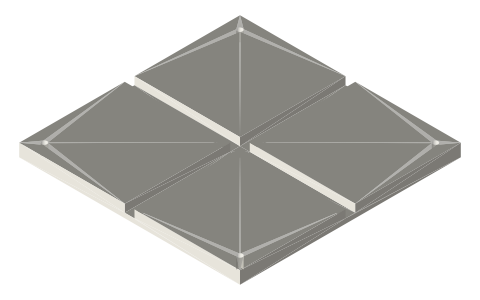

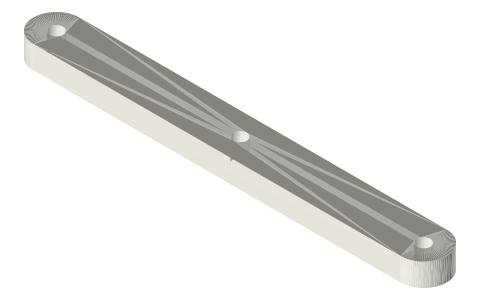

  • Parts (each has its own page): trammel-cross-plate-140, slide-block-12x6, centre-hole-link-80, dowel-pins-metric.
  • Brown's movement No. 152 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Elliptic trammel size chart

parametervalue
semi-axis a80 mm
semi-axis b40 mm
blocks2 × 12 × 6.2 × 5
grooves6.2 × 5 deep, crossed

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 152: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
elliptic-trammel-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=elliptic-trammel-mechanism

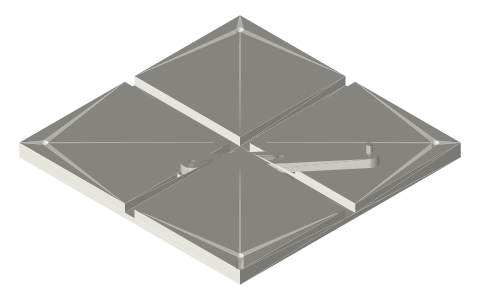

Elliptic trammel (trammel of Archimedes, ellipsograph), isometric render of a generated part
Render of elliptic-trammel-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does an elliptic trammel draw an ellipse?

Two blocks slide in crossed grooves and carry a bar; a point on the bar a distance a from one block and b from the other draws an ellipse with semi-axes a and b.

Which point draws a circle?

The midpoint between the two blocks (a = b) draws a circle of radius half their spacing.
