Proportional compasses (sliding pivot in slotted legs)

How do proportional compasses scale a measurement? · Hardware · basis: Xem Studio design following Brown No. 409 (1868)

Also called: proportional compasses, proportional dividers, reduction compass, scaling dividers, compás de reducción, Reduktionszirkel

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: pivot offset drawn; stays the same: ratio drawn.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Two pointed legs cross on a pivot that sits in a slide block running in a slot in each leg: the points at the two ends open in the ratio of the arm lengths either side of the pivot, so a distance taken with one pair of points is copied at a fixed scale by the other.
  • Drawn with the pivot 26.67 mm from the legs' centres: arms 106.67 and 53.33 mm, ratio 2 : 1, legs at 20°. Moving the slide to the centre gives 1 : 1; a set screw (not drawn) locks it.
  • Brown's No. 409 (proportional compasses with a sliding pivot and scale).

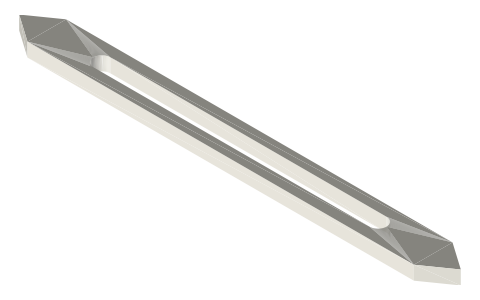

  • Parts (each has its own page): proportional-compass-leg-160-slot6, slide-block-12x6, dowel-pins-metric.
  • Brown's movement No. 409 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Proportional compasses size chart

parametervalue
legs2 × 160 × 14 × 5, slotted
pivot offset drawn26.67 mm
ratio drawn2 : 1
slide blocks2 × 12 × 6.2 (catalog)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 409: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
proportional-compasses-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=proportional-compasses-mechanism

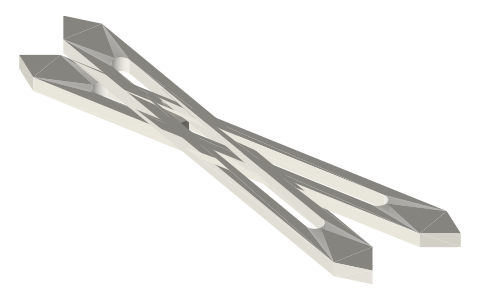

Proportional compasses (sliding pivot in slotted legs), isometric render of a generated part
Render of proportional-compasses-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How do proportional compasses scale a measurement?

Two pointed legs cross on a pivot that sits in a slide block running in a slot in each leg: the points at the two ends open in the ratio of the arm lengths either side of the pivot, so a distance taken with one pair of points is copied at a fixed scale by the other.
