Crank, slotted arm and toothed sector driving a rack

How does a crank in a slotted arm move a rack back and forth? · Hardware · basis: Xem Studio design following Brown No. 131 (1868)

Also called: sector and rack, crank slotted arm rack, oscillating sector rack, manivela, brazo ranurado y sector dentado, Kurbelschleife mit Zahnsegment und Zahnstange

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: crank radius, pivot distance, rack stroke; stays the same: arm swing, sector.
  • Resize: Gears scale by the module m (pitch Ø = m·z, centre distance = m·(z₁ + z₂)/2): keep the tooth counts so the ratio stays, and choose a standard module (0.5, 0.8, 1, 1.25, 1.5, 2, 2.5, 3).
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A crank pin, in a slide block, runs in the slot of an arm pivoted 70 mm from the crank centre: the arm rocks through ±9.9° (sin⁻¹ 12/70). A 60-tooth sector on the same pivot turns with the arm and drives a rack below: the rack moves R × angle = 30 mm × 0.346 rad = 10.4 mm total, each way, with the quick-return timing of the slotted lever.
  • Drawn at crank angle 200°: arm at 9.71°, rack 5.08 mm from mid-stroke, teeth meshed on the sector's pitch circle.
  • Brown's No. 131 (rectilinear motion of a rack from a crank by a slotted arm and toothed sector).

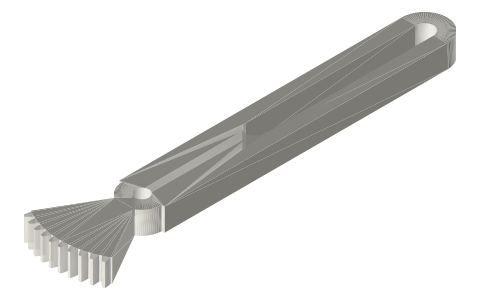

  • Parts (each has its own page): slotted-arm-sector-gear-m1-60t-60deg-b5, gear-rack-m1-120-full-depth, crank-disc-36-pin-r12, slide-block-12x6, dowel-pins-metric.
  • Brown's movement No. 131 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Crank, slotted arm and toothed sector driving a rack size chart

parametervalue
crank radius12 mm
pivot distance70 mm
arm swing±9.9°
sector60 T, R30
rack stroke10.4 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 131: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
crank-slotted-arm-sector-rack-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=crank-slotted-arm-sector-rack-mechanism

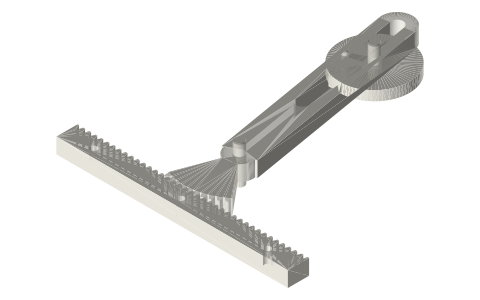

Crank, slotted arm and toothed sector driving a rack, isometric render of a generated part
Render of crank-slotted-arm-sector-rack-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a crank in a slotted arm move a rack back and forth?

A crank pin, in a slide block, runs in the slot of an arm pivoted 70 mm from the crank centre: the arm rocks through ±9.9° (sin⁻¹ 12/70). A 60-tooth sector on the same pivot turns with the arm and drives a rack below: the rack moves R × angle = 30 mm × 0.346 rad = 10.4 mm total, each way, with the quick-return timing of the slotted lever.
