Gear rack, module 1, 120 mm, full-depth 20° teeth

What are the tooth dimensions of a module 1 rack? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: gear rack, module 1 rack, rack gear, linear gear, cremallera módulo 1, Zahnstange Modul 1

Exact dimensions. True size, with no tolerance added.

length
120.0 mm
width
11.0 mm
height
8.0 mm

Notes

  • Module 1 basic rack (ISO 53): straight 20° flanks, pitch π = 3.1416 mm, addendum 1 mm above the pitch line, dedendum 1.25 mm below it, tooth thickness π/2 on the pitch line; 120 × 8 mm, body to 10 mm below the pitch line, three Ø3.4 (M3 clearance) holes across it.

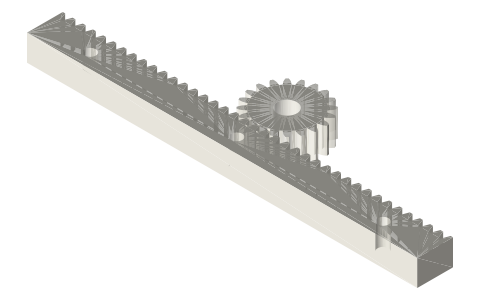

  • A module 1 pinion of N teeth sits with its axis N/2 mm above the pitch line and moves the rack πN mm per turn.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Gear rack, module 1, 120 mm, full-depth 20° teeth size chart

dimensionvalue
module1
pressure angle20°
pitch3.1416 mm
addendum / dedendum1 / 1.25 mm
length × width120 × 8 mm
pitch line to back10 mm
holes3 × Ø3.4 at x = −45, 0, 45

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 113: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
gear-rack-m1-120rack, pitch line y = 0, a tooth centred at x = 0, z 0..8STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=gear-rack-m1-120-full-depth

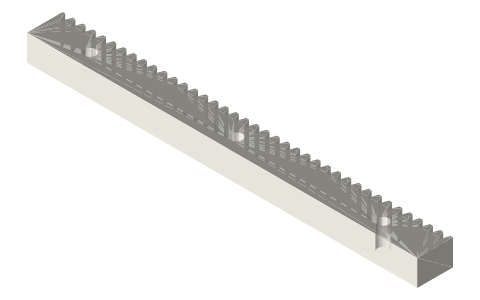

Gear rack, module 1, 120 mm, full-depth 20° teeth, isometric render of a generated part
Render of gear-rack-m1-120 from the free STEP; not to scale.

Fits with

Questions

What are the tooth dimensions of a module 1 rack?

Module 1 basic rack (ISO 53): straight 20° flanks, pitch π = 3.1416 mm, addendum 1 mm above the pitch line, dedendum 1.25 mm below it, tooth thickness π/2 on the pitch line; 120 × 8 mm, body to 10 mm below the pitch line, three Ø3.4 (M3 clearance) holes across it.
