Pinion between a fixed and a free rack (travel doubler)

How does a pinion between two racks double a stroke? · Hardware · basis: Xem Studio design following Brown No. 118 (1868)

Also called: rack doubler, pinion between two racks, stroke doubling rack, piñón entre cremallera fija y móvil, Ritzel zwischen fester und loser Zahnstange

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: racks, rod; stays the same: pinion, ratio.
  • Resize: Gears scale by the module m (pitch Ø = m·z, centre distance = m·(z₁ + z₂)/2): keep the tooth counts so the ratio stays, and choose a standard module (0.5, 0.8, 1, 1.25, 1.5, 2, 2.5, 3).
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A pinion turns on an axle carried by a rod. Below it is a fixed rack, above it a rack free to slide. Moving the axle a distance d rolls the pinion on the fixed rack, and its top, moving at twice the axle's speed, carries the free rack 2d: the stroke is doubled with no gearing ratio.
  • Module 1, 20-tooth pinion, racks with pitch lines 20 mm apart (one pitch diameter); drawn with the axle 6.28 mm (two pitches) along and the free rack 12.57 mm along. The free rack's own guide is not drawn.
  • Brown's No. 118 (pinion on the connecting rod between a fixed and a movable rack).

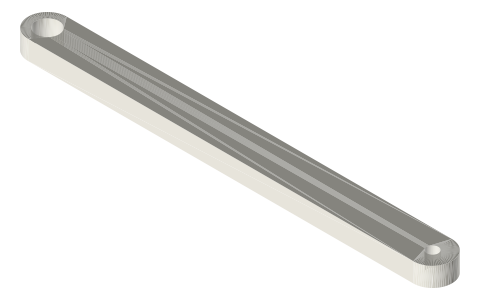

  • Parts (each has its own page): gear-rack-m1-120-full-depth, spur-gears-module-1, pinion-carrier-rod-100-bore6, dowel-pins-metric.
  • Brown's movement No. 118 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Pinion between a fixed and a free rack size chart

parametervalue
pinion20 T, module 1
racks2 × 120 mm, pitch lines 20 mm apart
ratiofree rack = 2 × axle travel
rod100 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 118: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
pinion-between-racks-doubler-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=pinion-between-racks-doubler-mechanism

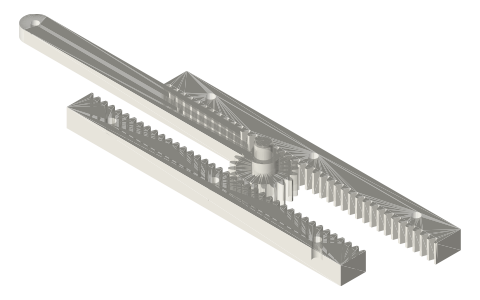

Pinion between a fixed and a free rack (travel doubler), isometric render of a generated part
Render of pinion-between-racks-doubler-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a pinion between two racks double a stroke?

A pinion turns on an axle carried by a rod. Below it is a fixed rack, above it a rack free to slide. Moving the axle a distance d rolls the pinion on the fixed rack, and its top, moving at twice the axle's speed, carries the free rack 2d: the stroke is doubled with no gearing ratio.
