Stamp lifter: half-toothed pinion raising a rack and letting it fall

How does a stamp mill lift and drop its stamp? · Hardware · basis: Xem Studio design following Brown No. 351 (1868)

Also called: stamp mill mechanism, lift and drop mechanism, mutilated gear rack lifter, mecanismo de pisón, Stampfwerk (Pochwerk)

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: rack, lift per turn; stays the same: pinion; step to the nearest standard size (and redraw the hole or pocket it fits): guide.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A pinion with teeth on only half its rim meshes with a rack on the vertical stamp rod: while the toothed half is engaged the rod is lifted (half a turn = 10 pitches = 31.4 mm), then the blank half comes round, the rack is free and the stamp drops under its own weight.
  • Catalog parts: the module 1 pinion with 10 of 20 teeth and the 120 mm full-depth rack, pinion axis 10 mm from the rack's pitch line; drawn with the toothed half meshing and the rack in a guide block.
  • Brown's No. 351 (stamp: shaft with a part-toothed wheel lifting a rack and letting it fall).
  • Parts (each has its own page): mutilated-pinion-m1-20t-half, gear-rack-m1-120-full-depth, rack-guide-block-32x12-ch11-5x8, dowel-pins-metric.
  • Brown's movement No. 351 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Stamp lifter: half-toothed pinion raising a rack and letting it fall size chart

parametervalue
pinionmodule 1, 10 of 20 teeth
rack120 mm, module 1
lift per turn31.42 mm, then free fall

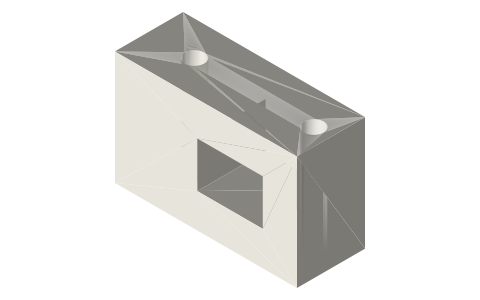

guide11.5 × 8 channel

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 351: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
stamp-lifter-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=stamp-lifter-mechanism

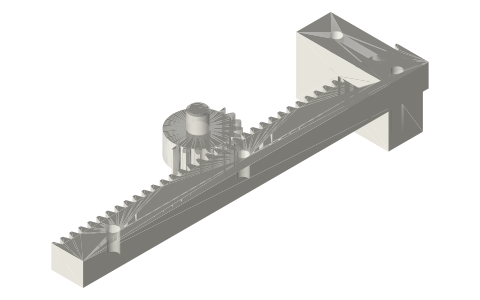

Stamp lifter: half-toothed pinion raising a rack and letting it fall, isometric render of a generated part
Render of stamp-lifter-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a stamp mill lift and drop its stamp?

A pinion with teeth on only half its rim meshes with a rack on the vertical stamp rod: while the toothed half is engaged the rod is lifted (half a turn = 10 pitches = 31.4 mm), then the blank half comes round, the rack is free and the stamp drops under its own weight.
