Mutilated pinion, module 1, 20 T with 10 teeth kept (half)

What is a mutilated gear? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: mutilated gear, partial gear, intermittent gear, engranaje mutilado, Teilzahnrad

Exact dimensions. True size, with no tolerance added.

length
21.99 mm
width
19.74 mm
height
8.0 mm

Notes

  • A module 1, 20-tooth spur gear (catalog gear, Ø6 bore, 8 face) with the teeth of one half cut away to the root circle (Ø17.5): it drives for half a turn and is idle for the other half.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Mutilated pinion, module 1, 20 T with 10 teeth kept size chart

dimensionvalue
module1
teeth10 of 20 (180°)
root Ø (cut half)17.5 mm
boreØ6

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 114: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
mutilated-pinion-m1-20tmutilated pinion, teeth on the +Y halfSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=mutilated-pinion-m1-20t-half

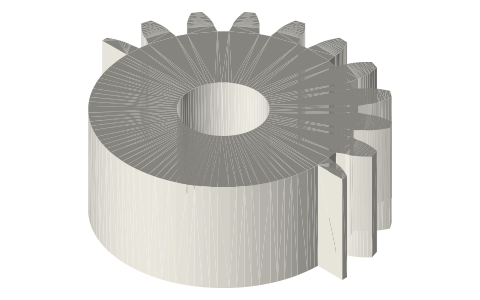

Mutilated pinion, module 1, 20 T with 10 teeth kept (half), isometric render of a generated part
Render of mutilated-pinion-m1-20t from the free STEP; not to scale.

Fits with

Questions

What is a mutilated gear?

A module 1, 20-tooth spur gear (catalog gear, Ø6 bore, 8 face) with the teeth of one half cut away to the root circle (Ø17.5): it drives for half a turn and is idle for the other half.
