Eccentric and strap driving a slide (10 mm stroke)

How does an eccentric and strap give reciprocating motion? · Hardware · basis: Xem Studio design following Brown No. 89 (1868)

Also called: eccentric and strap, eccentric rod, eccentric drive, excéntrica y collar, Exzenter mit Exzenterbügel

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: offset, stroke, strap; step to the nearest standard size (and redraw the hole or pocket it fits): guide.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • An eccentric is a crank whose pin is so large that it surrounds the shaft: a disc fixed off-centre on the shaft turns inside a strap, and the strap's rod drives whatever it is pinned to. Here the rod end is pinned to a block sliding in a straight slot, so the block reciprocates exactly like a slider-crank with crank radius = the offset and rod length = strap centre to eye.
  • Catalog Ø30 eccentric with 5 mm offset (stroke 10 mm) and its split strap (eye 51 mm from the bore centre), a slide block in the 90 mm slot guide plate; drawn at 60°, block at x = 53.32 mm.
  • Brown's No. 89 (eccentric and strap: the steam engine's valve drive).
  • Parts (each has its own page): eccentric-and-strap, slide-block-12x6, slot-guide-plate-90, dowel-pins-metric.
  • Brown's movement No. 89 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Eccentric and strap driving a slide size chart

parametervalue
offset5 mm
stroke10 mm
strapØ30 bore, eye at 51 mm
guideslot plate 90, 6.2 slot

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 89: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
eccentric-strap-slider-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=eccentric-strap-slider-mechanism

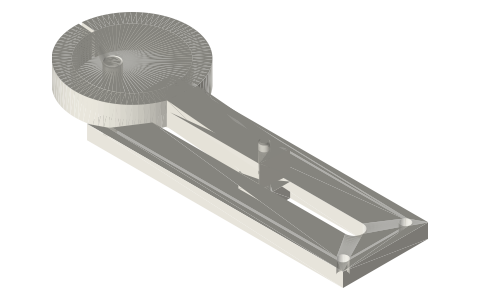

Eccentric and strap driving a slide (10 mm stroke), isometric render of a generated part
Render of eccentric-strap-slider-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does an eccentric and strap give reciprocating motion?

An eccentric is a crank whose pin is so large that it surrounds the shaft: a disc fixed off-centre on the shaft turns inside a strap, and the strap's rod drives whatever it is pinned to. Here the rod end is pinned to a block sliding in a straight slot, so the block reciprocates exactly like a slider-crank with crank radius = the offset and rod length = strap centre to eye.
