Slot guide plate 90 × 30 × 5, 6.2 mm slot (74 long)

What is a slot guide plate? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: slot guide, linear slot plate, placa guía ranurada, Schlitzführungsplatte

Exact dimensions. True size, with no tolerance added.

length
90.0 mm
width
30.0 mm
height
5.0 mm

Notes

  • 90 × 30 × 5 plate with a 6.2 mm wide, 74 mm (end-to-end) round-ended slot: guides the 12 × 6.2 slide block on a straight line; four Ø3.4 (M3 clearance) corner holes.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Slot guide plate 90 × 30 × 5, 6.2 mm slot size chart

dimensionvalue
plate90 × 30 × 5 mm
slot6.2 × 74 mm
holes4 × Ø3.4

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 339: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
slot-guide-plate-90plate, z −2.5..2.5, slot along XSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=slot-guide-plate-90

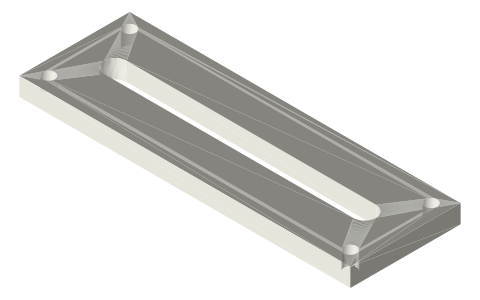

Slot guide plate 90 × 30 × 5, 6.2 mm slot (74 long), isometric render of a generated part
Render of slot-guide-plate-90 from the free STEP; not to scale.

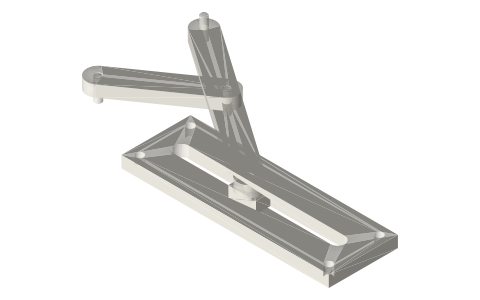

Fits with

Questions

What is a slot guide plate?

90 × 30 × 5 plate with a 6.2 mm wide, 74 mm (end-to-end) round-ended slot: guides the 12 × 6.2 slide block on a straight line; four Ø3.4 (M3 clearance) corner holes.
