Helical (oblique-toothed) gears on parallel shafts, 20 : 30, helix 20°

Why are helical gears smoother than spur gears? · Hardware · basis: Xem Studio design following Brown No. 40 (1868)

Also called: helical gears, oblique tooth gears, helical gear pair, engranajes helicoidales, Schrägstirnräder

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: face, centre distance; stays the same: helix; step to the nearest standard size (and redraw the hole or pocket it fits): normal module.
  • Resize: Gears scale by the module m (pitch Ø = m·z, centre distance = m·(z₁ + z₂)/2): keep the tooth counts so the ratio stays, and choose a standard module (0.5, 0.8, 1, 1.25, 1.5, 2, 2.5, 3).
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • The teeth are cut along a helix, so each tooth comes into mesh gradually from one end of the face to the other and more than one pair is always in contact: quieter, smoother and stronger than straight teeth, at the cost of an end thrust along the shafts.
  • Normal module 1.5, helix 20° (right hand on the 20-tooth, left on the 30-tooth), 12 mm face: transverse module 1.6, centre distance 39.91 mm, transverse pressure angle 21.17°. Each transverse section is an exact involute spur mesh, twisted 15.68° over the face on the pinion.
  • Brown's No. 40 (oblique-toothed gears, giving a more continuous bearing of the teeth).

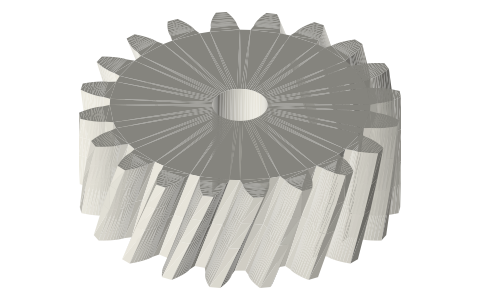

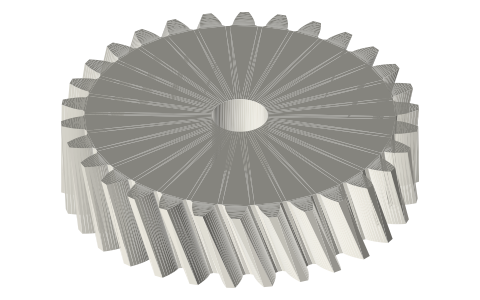

  • Parts (each has its own page): helical-gear-mn1-5-20t-beta20-rh-bore6, helical-gear-mn1-5-30t-beta20-lh-bore8, linear-shafts-h6.
  • Brown's movement No. 40 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Helical (oblique-toothed) gears on parallel shafts, 20 : 30, helix 20° size chart

parametervalue
normal module1.5
teeth20 / 30
helix20°, opposite hands
face12 mm
centre distance39.91 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 40: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
helical-gears-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=helical-gears-mechanism

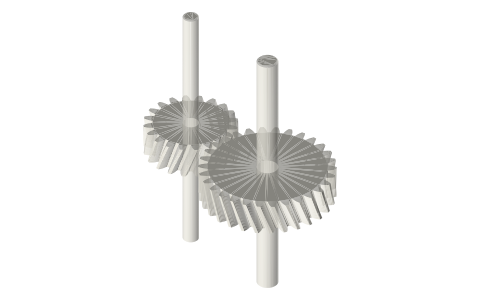

Helical (oblique-toothed) gears on parallel shafts, 20 : 30, helix 20°, isometric render of a generated part
Render of helical-gears-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

Why are helical gears smoother than spur gears?

The teeth are cut along a helix, so each tooth comes into mesh gradually from one end of the face to the other and more than one pair is always in contact: quieter, smoother and stronger than straight teeth, at the cost of an end thrust along the shafts.

What is the centre distance of helical gears?

m_n (N₁ + N₂) / (2 cos β): 1.5 × 50 / (2 cos 20°) = 39.91 mm here.
