Hobbywing EZRUN 4268 SL 2600 kV motor (30402750)

What are the dimensions of the Hobbywing EZRUN 4268 SL 2600 kV motor? · Modern device · basis: Manufacturer specifications (Hobbywing)

Also called: hobbywing 4268 dimensions, 4268 motor size, ezrun 4268 length, 4268 shaft, medidas motor 4268, hobbywing 4268 maße, hobbywing ezrun 4268 sl 2600 kv motor specs, hobbywing ezrun 4268 sl 2600 kv motor measurements

Exact dimensions. True size, with no tolerance added.

length
42 mm
width
42 mm
height
68 mm

Notes

  • Shaft length and mounting pattern are not published.
  • No CAD file: the maker publishes only overall sizes, and a plain box or cylinder is not useful design geometry. The table is the published data; parts with real geometry have their own pages.

Hobbywing EZRUN 4268 SL 2600 kV motor size chart

dimensionvalue
O.D.42.0 mm (1.654 in)
Length68.0 mm (2.677 in)
Shaft5.0 mm
Weight343 g
kV2600
LiPo2–4S
Bearingsfront 5 × 16 × 5 mm, rear 5 × 13 × 4 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

HobbywingEzRun 4274 / 4268webPublisher's page; dimensions are facts

Xem scan

File coming

No downloadable true-size file yet: the published figures do not fix the whole shape, and Xem never guesses a number. A measured scan is planned; request it and it moves up.

Votes decide what gets scanned first.

+1 for a scan of Hobbywing EZRUN 4268 SL 2600 kV motor (30402750)

Your vote moves it up the list. Email is optional: only if you want one message when the file is ready.

Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=hobbywing-ezrun-4268-sl-motor

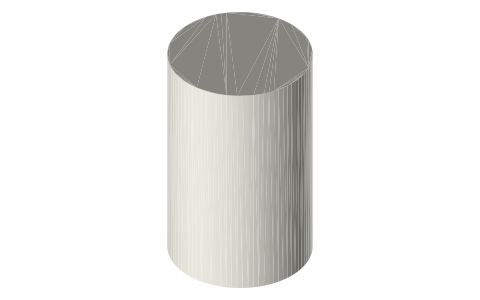

Hobbywing EZRUN 4268 SL 2600 kV motor (30402750), isometric render of a generated part
Schematic, not to scale.

Fits with

Questions

How big is the Hobbywing 4268?

42 mm diameter, 68 mm long, 5 mm shaft, 343 g.
