Hobbywing EZRUN 4274 SL 2200 kV motor (30402500)

What are the dimensions of the Hobbywing EZRUN 4274 SL 2200 kV motor? · Modern device · basis: Manufacturer specifications (Hobbywing)

Also called: hobbywing 4274 dimensions, 4274 motor size, ezrun 4274 length, 4274 shaft size, 1/8 motor 42mm, 4274 bearings, medidas motor 4274, hobbywing 4274 maße

Exact dimensions. True size, with no tolerance added.

length
42 mm
width
42 mm
height
74 mm

Notes

  • Shaft length and mounting-screw pattern are not published on the product page.
  • No CAD file: the maker publishes only overall sizes, and a plain box or cylinder is not useful design geometry. The table is the published data; parts with real geometry have their own pages.

Hobbywing EZRUN 4274 SL 2200 kV motor size chart

dimensionvalue
O.D.42.0 mm (1.654 in)
Length74.0 mm (2.913 in)
Shaft5.0 mm
Weight418 g
kV2200
LiPo2–6S
Bearingsfront 5 × 16 × 5 mm, rear 5 × 13 × 4 mm

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

HobbywingEzRun 4274 / 4268webPublisher's page; dimensions are facts

Xem scan

File coming

No downloadable true-size file yet: the published figures do not fix the whole shape, and Xem never guesses a number. A measured scan is planned; request it and it moves up.

Votes decide what gets scanned first.

+1 for a scan of Hobbywing EZRUN 4274 SL 2200 kV motor (30402500)

Your vote moves it up the list. Email is optional: only if you want one message when the file is ready.

Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=hobbywing-ezrun-4274-sl-motor

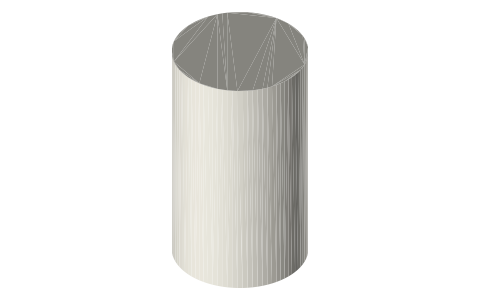

Hobbywing EZRUN 4274 SL 2200 kV motor (30402500), isometric render of a generated part
Schematic, not to scale.

Fits with

Questions

How big is the Hobbywing 4274?

42 mm diameter, 74 mm long, 5 mm shaft, 418 g.
