Lead screw and nut-slide (rotation to straight travel), Tr10×2

How does a lead screw move a slide? · Hardware · basis: Xem Studio design following Brown No. 103 (1868)

Also called: lead screw, screw slide, lead screw and nut, linear screw drive, husillo y carro, Gewindespindel mit Schlitten

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: travel per turn, slide travel, lever; step to the nearest standard size (and redraw the hole or pocket it fits): thread.
  • Resize: Travel per turn = thread lead, a standard size: scale the frame and pick a standard thread; a coarser lead moves farther per turn with less force gain.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A screw held axially in two bearings turns; a nut that cannot turn (its foot runs in a rail slot) must then travel along the screw: 2 mm per turn for a Tr10×2 thread. Either direction of rotation gives the opposite travel.
  • Travel per turn = lead; force gain (ideal) = 2π × lever radius / lead, 2π × 40 / 2 = 126 with the 80 mm tommy bar; the 30° trapezoidal thread is self-locking at this lead angle (3.6°).
  • Brown's No. 103 (rectilinear motion of a slide by the rotation of a screw): the carriage feed of lathes, slides and stages. Basic-profile thread drawn engaged, no allowance.

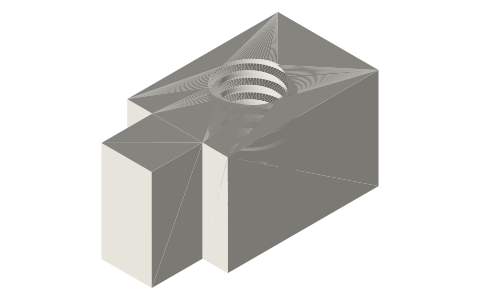

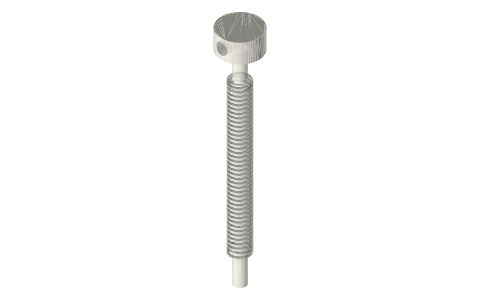

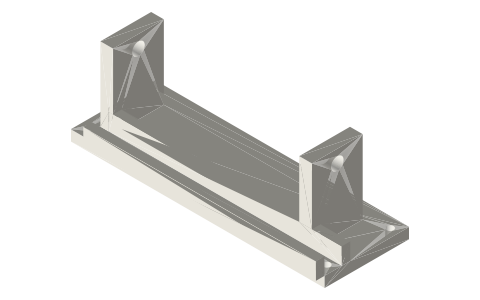

  • Parts (each has its own page): lead-screw-tr10x2-l80-journals-6, nut-slide-tr10x2-16x24-rail-foot, lead-screw-frame-120-tr10x2, tommy-bar-6x80.
  • Brown's movement No. 103 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Lead screw and nut-slide (rotation to straight travel), Tr10×2 size chart

parametervalue
threadTr10×2
travel per turn2 mm
slide travel≈ 60 mm
lever80 mm tommy bar

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 103: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
lead-screw-and-slide-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=lead-screw-and-slide-mechanism

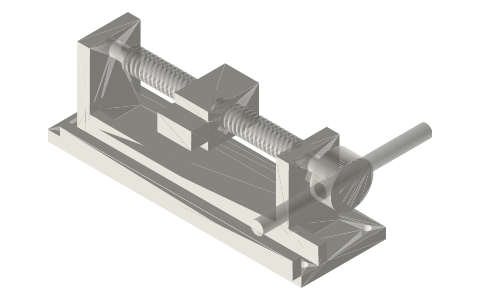

Lead screw and nut-slide (rotation to straight travel), Tr10×2, isometric render of a generated part
Render of lead-screw-and-slide-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a lead screw move a slide?

A screw held axially in two bearings turns; a nut that cannot turn (its foot runs in a rail slot) must then travel along the screw: 2 mm per turn for a Tr10×2 thread. Either direction of rotation gives the opposite travel.

How far does the slide move per turn?

One lead: 2 mm for a single-start Tr10×2 thread.
