Stone block 80 × 60 × 50 with a dovetail lewis hole 20 → 30 × 14, 30 deep
What is a lewis hole? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: lewis hole, dovetail hole stone, piedra con agujero de castañuela, Werkstein mit Wolfsloch
Exact dimensions. True size, with no tolerance added.
- length
- 80.0 mm
- width
- 60.0 mm
- height
- 50.0 mm
Notes

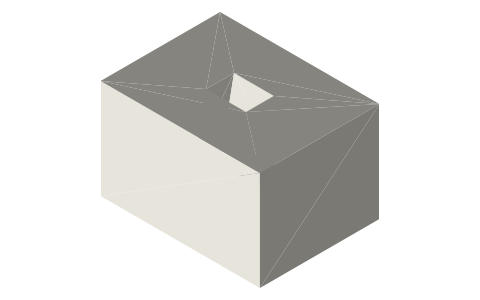

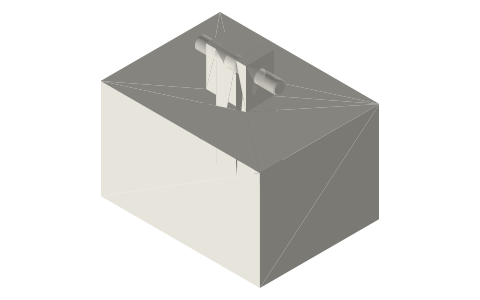

- 80 × 60 × 50 block (the stone) with a dovetail hole in its top: 20 mm wide at the surface widening to 30 mm at 30 mm depth, 14 mm the other way — the undercut the lewis locks into.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Stone block 80 × 60 × 50 with a dovetail lewis hole 20 → 30 × 14, 30… size chart
| dimension | value |
|---|---|
| block | 80 × 60 × 50 mm |
| hole at surface | 20 × 14 mm |
| hole at bottom | 30 × 14 mm |
| depth | 30 mm |
