Lewis (three-piece stone lifter in a dovetail hole)

How does a lewis lift a stone? · Hardware · basis: Xem Studio design following Brown No. 493 (1868)

Also called: lewis, lewis pin, stone lifting lewis, dovetail stone lifter, castañuela (lewis), Steinwolf (Wolf)

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, step to the nearest standard size (and redraw the hole or pocket it fits): pin.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A dovetail hole is cut in the top of the stone; the two tapered side pieces go in first, then a parallel centre piece between them pushes them out into the undercut. A pin through all three takes the hoisting shackle: pulling up jams the wedges against the dovetail's sloping walls, so the stone cannot slip off.
  • Hole 20 → 30 mm over 30 mm depth, 14 mm wide; centre piece 10 mm, side wedges 5 → 10 mm, so the three fill the dovetail exactly (contact on every face, no overlap); Ø6 pin 12 mm above the stone. To release, lift the centre piece out first.
  • Brown's No. 493 (lewis, for raising stones); in use since Roman times.

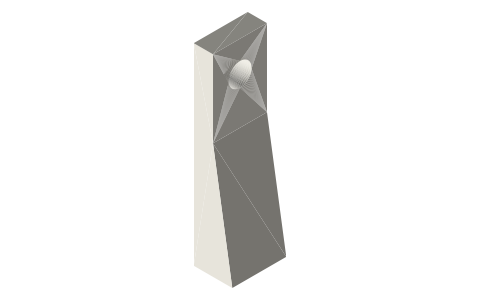

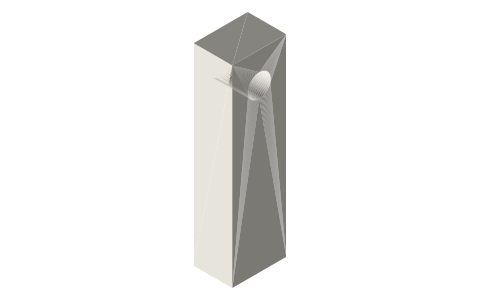

  • Parts (each has its own page): lewis-stone-block-80x60x50, lewis-centre-piece-10x14x50, lewis-side-wedge-5-10x14x50, dowel-pins-metric.
  • Brown's movement No. 493 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Lewis size chart

parametervalue
hole20 → 30 × 14, 30 deep
centre piece10 × 14 × 50
side wedges2 × (5 → 10) × 14 × 50
pinØ6 × 40
