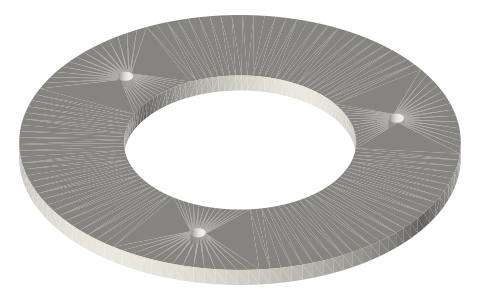

Linear alternator cap ring, Ø96 and Ø116
What holds the linear alternator stator in its housing? · Hardware · basis: Same outline and rim circle as the housing's top flange; bore = sleeve bore − 2
Also called: linear alternator cap, alternator retaining ring
Long Earth Society build part. Power take-off on the LES free-piston test bed. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 2 in table
Notes
- A flat ring Ø96 (2 in) or Ø116 (3 in) × 4 with a Ø50.5 bore, that holds the back-iron sleeve and bobbin down in the housing.
- 3 × Ø3.4 holes on the same rim circle as the housing (R35.2 / R44): M3 × 12 screws go up through the top flange and cap into the standoffs that carry the flexure ring and stack B.
Linear alternator cap ring, Ø96 and Ø116 size chart
| file | outside | bore | thickness | rim circle |
|---|---|---|---|---|
| alt-cap-2in-flex80 | 96 | 50.5 | 4 | R35.2 |
| alt-cap-3in-flex100 | 116 | 50.5 | 4 | R44 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| cap rim holes | Ø3.4 | M3 screw clearance | designed | alt-cap-* |
| cap ring bore | Ø50.5 | holds the sleeve and bobbin down | designed | alt-cap-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| NASA (NTRS, public domain) | Linear alternator design for free-piston Stirling convertors (2005) | US Government work, public domain | |
| NASA (NTRS, public domain) | Sunpower/NASA 80 We free-piston Stirling convertor (2002) | US Government work, public domain | |
| Wikipedia | Linear alternator | web | CC BY-SA 4.0 (text) |
| Wikipedia | Free-piston engine | web | CC BY-SA 4.0 (text) |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 2 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| alt-cap-2in-flex80 | 2in cap ring: holds the sleeve and bobbin down on the housing's top flange; 3 × M3 × 12 through flange and cap into the standoffs for flexure stack B | STEP · STL |
| alt-cap-3in-flex100 | 3in cap ring: holds the sleeve and bobbin down on the housing's top flange; 3 × M3 × 12 through flange and cap into the standoffs for flexure stack B | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=linear-alternator-cap-ring

How it fits

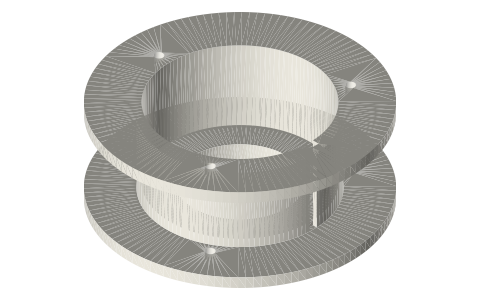

Goes in or on
Connects to

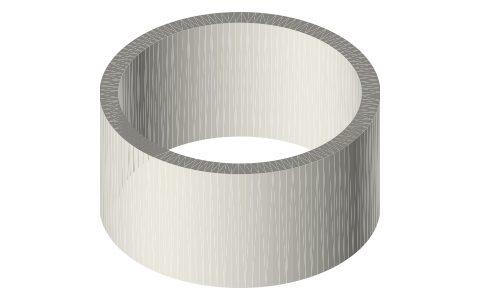

Also needed
You might also need
Questions
What does the alternator cap ring do?
It clamps the sleeve and bobbin down onto the housing's ledge; its Ø50.5 bore overlaps the Ø52.5 sleeve bore by 1 mm all round.
What screws hold the cap ring?
3 × M3 × 12 through the top flange and cap into the standoffs above.
