Linear alternator coil Ø50 × 10 (≈ 314 turns)

How many turns and what size is each coil of the linear alternator? · Hardware · basis: Winding volume of one bobbin bay; turns and resistance computed in the generator for 0.30 mm wire

Also called: linear alternator coil turns, how to wind a linear alternator coil, coil 314 turns 0.3 mm

Used in Long Earth Society builds. Generating electricity with any solenoid

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
6 in table

Notes

  • One coil of the alternator, as the solid of its winding: Ø50 outside, Ø38.6 inside (the bobbin core), 10 long.
  • About 314 turns of 0.30 mm wire fill it. Two per alternator, the second wound the opposite way; both in series come to about 21.3 Ω.
  • At 12 Hz and 12 mm stroke the pair gives about 22.7 V peak per tesla of gap flux.

Linear alternator coil Ø50 × 10 size chart

parametervalue
outside50
inside38.6
length10
turns≈ 314 of 0.30 mm
resistance, both in series21.3 Ω
EMF per tesla22.73 V peak at 12 Hz, 12 mm

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles

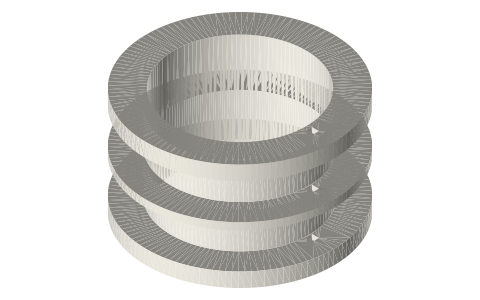

coil in its baybay volumebobbin baydesignedalt-coil-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

NASA (NTRS, public domain)Linear alternator design for free-piston Stirling convertors (2005)PDFUS Government work, public domain
NASA (NTRS, public domain)Sunpower/NASA 80 We free-piston Stirling convertor (2002)PDFUS Government work, public domain
WikipediaLinear alternatorwebCC BY-SA 4.0 (text)
WikipediaFree-piston enginewebCC BY-SA 4.0 (text)
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
alt-coil-baycoil: the winding volume of one bay, Ø50 × 10 (about 314 turns of 0.30 mm wire fill it); two per alternator, the second wound the opposite waySTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=linear-alternator-coil

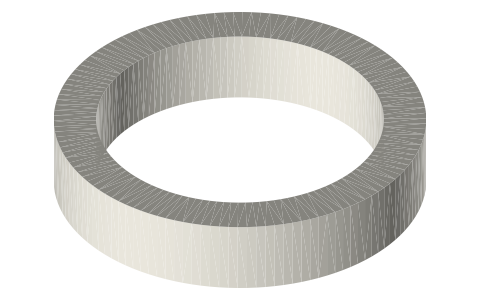

Linear alternator coil Ø50 × 10 (≈ 314 turns), isometric render of a generated part
Render of alt-coil-bay from the free STEP; not to scale.

You might also need

Questions

How many turns on each linear alternator coil?

About 314 turns of 0.30 mm wire in the Ø50 × 10 bay.

How are the two coils connected?

Wound in opposite directions and joined start-to-start in series: about 21.3 Ω together.
