M.2 2242 SSD / module size

What size is an M.2 2242 SSD? · Modern device · basis: SNIA M.2 overview (PCI-SIG M.2 form factor)

Also called: m.2 2242 dimensions, m.2 2242 size, 2242 ssd size, medidas SSD M.2 2242, dimensões SSD M.2 2242, M.2 2242 SSD Maße, dimensions SSD M.2 2242

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

length
42 mm
width
22 mm
height
0.8 mm

Notes

  • M.2 2242: 22 mm wide × 42 mm long (the code is width then length).
  • Component height classes: single-sided S1 1.2, S2 1.35, S3 1.5 mm above the board; double-sided D1–D3 up to 1.50 mm top / 1.35 mm bottom.
  • Key notches: B key pins 12–19, M key pins 59–66 of the 75-position edge connector. Board thickness and screw-notch position are in the members-only spec (not published openly).
  • The file is the board outline (no notch, 0.8 mm nominal) — check the screw position on your drive.

M.2 2242 SSD / module size size chart

dimensionvalue
width22 mm
length42 mm
S3 top components1.50 mm
B keypins 12–19
M keypins 59–66

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
M.2 edge connector22 wide × 42 long; 75 positions; B key pins 12–19, M key pins 59–66M.2 socket; height classes S1 1.2 / S2 1.35 / S3 1.5, D1–D3 up to 1.50 top / 1.35 bottom; screw-notch position in the members-only spec (not published)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

SNIAM.2 form factor overview (PDF)webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
m2-2242-board42 × 22 mm board outline, 0.8 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=m-2-2242-ssd

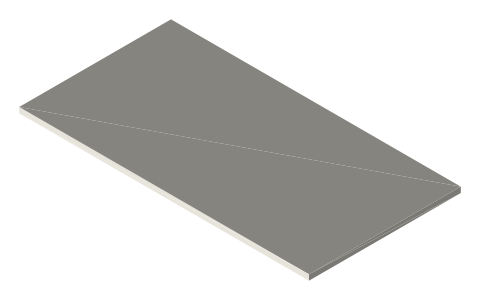

M.2 2242 SSD / module size, isometric render of a generated part
Render of m2-2242-board from the free STEP; not to scale.

Fits with

Questions

How big is an M.2 2242?

22 × 42 mm.
