Slotted bar 80 × 20 × 6 for the mangle pinion's shaft (slot from R28 to R52)

What guides the mangle pinion? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance

Also called: slotted bar, guide bar, barra ranurada, Schlitzschiene

Exact dimensions. True size, with no tolerance added.

length
80.0 mm
width
20.0 mm
height
6.0 mm

Notes

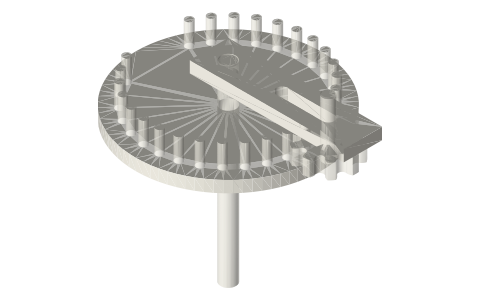

  • Fixed bar above the pin wheel with a Ø8 hole on the wheel's axis and a 6 mm slot along a radius from 28 to 52 mm: the pinion's Ø6 shaft slides in it, inside the pin circle for one direction and outside for the other.
  • Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).

Slotted bar 80 × 20 × 6 for the mangle pinion's shaft size chart

dimensionvalue
bar80 × 20 × 6
slot6 mm, R28 → R52
holeØ8 at the wheel axis

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 36: figure, his text and an animationwebPublisher's page; dimensions are facts
Xem StudiodrawingwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
mangle-slot-bar-r28-52bar, wheel axis at origin, slot along +X, z 0..6STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=mangle-slot-bar-r28-52

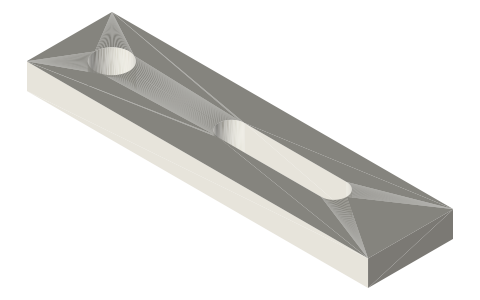

Slotted bar 80 × 20 × 6 for the mangle pinion's shaft (slot from R28 to R52), isometric render of a generated part
Render of mangle-slot-bar-r28-52 from the free STEP; not to scale.

Fits with

Questions

What guides the mangle pinion?

Fixed bar above the pin wheel with a Ø8 hole on the wheel's axis and a 6 mm slot along a radius from 28 to 52 mm: the pinion's Ø6 shaft slides in it, inside the pin circle for one direction and outside for the other.
