Mangle wheel and pinion: continuous rotation to reciprocating rotation
How does a mangle wheel reverse itself? · Hardware · basis: Xem Studio design following Brown No. 36 (1868)
Also called: mangle wheel, mangle gear, reversing pin wheel, oscillating gear, rueda de mangle y piñón, Mangelrad und Ritzel
Exact dimensions. True size, with no tolerance added.
- sizes
- 4 in table
Notes
- Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, stays the same: pinion, wheel swing; step to the nearest standard size (and redraw the hole or pocket it fits): pins.
- Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
- A pinion turning always the same way drives a wheel whose pins stand in a circle with a gap. Running outside the pins it turns the wheel one way; at the gap it slides round the end pin (its shaft moves in a radial slot) and runs inside the pins, turning the wheel back: continuous rotation becomes back-and-forth rotation.

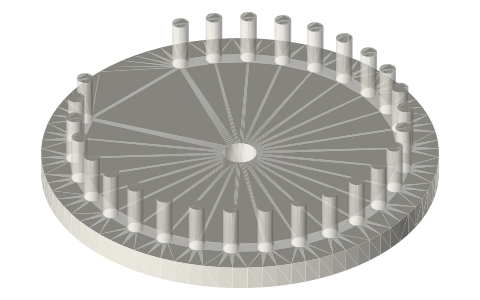

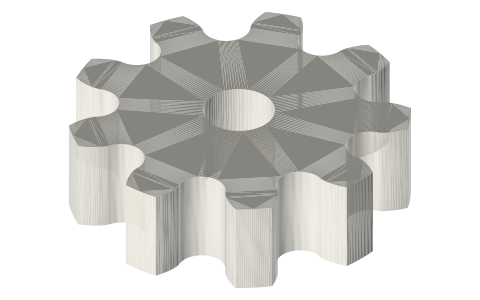

- Here 27 pins on a 40 mm radius (30-position pitch, gap of 3) and a 9-tooth pinion of 12 mm pitch radius: centres 52 mm apart outside, 28 mm inside, so the wheel turns 0.3 × pinion speed — the same both ways because one pin circle serves both sides. Drawn running outside.
- Brown's No. 36 (mangle wheel and pinion, with the pinion shaft vibrating in a slot).
- Parts (each has its own page): mangle-pin-wheel-r40-27-pins, mangle-pinion-9t-for-pins-r40, mangle-slot-bar-r28-52, dowel-pins-metric, linear-shafts-h6.
- Brown's movement No. 36 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.
Mangle wheel and pinion: continuous rotation to reciprocating rotation size chart
| parameter | value |
|---|---|
| pins | 27 × Ø4 on R40 |
| pinion | 9 T, pitch R12 |
| centres | 52 (outside) / 28 (inside) mm |
| wheel swing | ≈ 300° each way |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 36: figure, his text and an animation | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| mangle-wheel-and-pinion-mechanism-assembly | Assembled mechanism, all parts placed at one pose (STEP keeps each part separate) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=mangle-wheel-and-pinion-mechanism

Fits with





Questions
How does a mangle wheel reverse itself?
A pinion turning always the same way drives a wheel whose pins stand in a circle with a gap. Running outside the pins it turns the wheel one way; at the gap it slides round the end pin (its shaft moves in a radial slot) and runs inside the pins, turning the wheel back: continuous rotation becomes back-and-forth rotation.
