Oldham coupling (parallel-offset shaft coupling)

How does an Oldham coupling handle offset shafts? · Hardware · basis: Xem Studio drawing; classic mechanism

Also called: oldham coupling, oldham coupler, z axis oldham coupling, acoplamiento Oldham, acoplamento Oldham, Oldham Kupplung, accouplement Oldham

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: diameter, max offset; step to the nearest standard size (and redraw the hole or pocket it fits): bores.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.

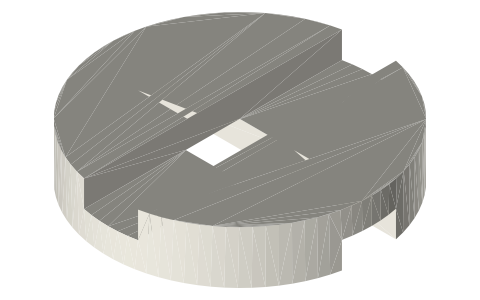

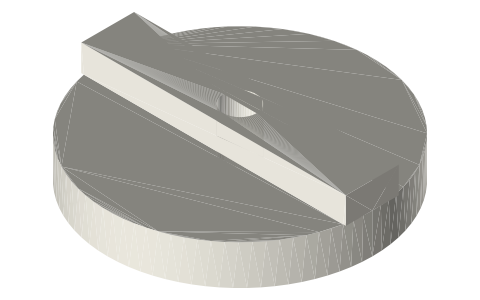

  • Two hubs with face tongues at 90° to each other and a centre disc slotted on both faces: the disc slides on both tongues, so shafts that are parallel but offset turn together.
  • Speed is exactly 1:1 (no cyclic error, unlike a universal joint); the disc centre orbits at twice shaft speed with a radius of half the offset.
  • Common on 3D-printer Z lead screws and pumps.
  • Parts (each has its own page): oldham-coupling-hub-40, oldham-coupling-disc-40, shaft-couplers.
