Pantograph linkage (2:1 copier)

How does a pantograph scale a drawing? · Hardware · basis: Xem Studio drawing; classic mechanism (Brown No. 246)

Also called: pantograph, pantograph mechanism, pantograph linkage 3d print, pantógrafo mecanismo, Storchschnabel Pantograph, pantographe mécanisme

Exact dimensions. True size, with no tolerance added.

sizes
3 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: arms; stays the same: scale k; step to the nearest standard size (and redraw the hole or pocket it fits): pins.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Four bars pinned as a parallelogram with the fixed pivot, tracer and pen on one straight line: pen travel = tracer travel × k (k = 2 here).
  • Moving the pivots along the arms changes k; swapping tracer and pen reduces instead of enlarges. The line pivot–tracer–pen must stay straight for the copy to be true.
  • Also used in scissor lifts, sewing-machine and engraving copiers.

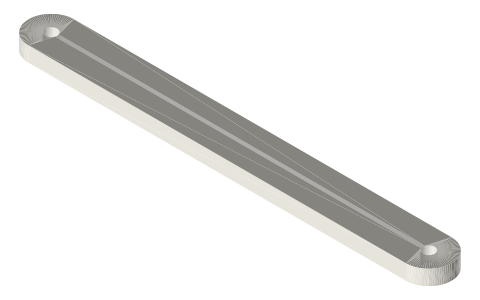

  • Parts (each has its own page): pantograph-arms-200-100, pins-3mm. Brown's movement No. 246 shows it (1868).

Pantograph linkage size chart

parametervalue
scale k2 : 1
arms200 / 100 mm
pinsØ3

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
pantograph-linkage-assemblyAssembled mechanism, all parts placed (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=pantograph-linkage

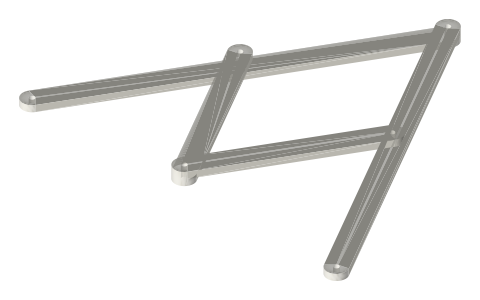

Pantograph linkage (2:1 copier), isometric render of a generated part
