Ø12 piston rod with plug and Ø3 stinger

What rod connects two pistons through a 12 mm bore? · Hardware · basis: Beale free-piston layout (rod area drive), Redlich & Berchowitz linear dynamics; stinger stiffness from Euler beam relations

Also called: displacer rod through piston, beale free piston rod, stinger rod

Long Earth Society build part. The displacer drive of my free-piston generator. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • The rod's area (Ø12) is the displacer's drive: the working gas pushes on it from below and the bounce space from above, and that difference, swinging with the piston, pushes the displacer ahead of the piston (the Beale free-piston principle).
  • It runs up through leaf B's hub (clamped there by the cap's boss and a collar) and the piston's Ø12 hub bore, a running fit 76 mm long that is also the seal between working and bounce space, to the plug at its top.
  • The Ø3 stinger joins the plug to the gas-spring piston: stiff along its length, soft sideways (87 mm free), so the gas spring's own cylinder does not fight the rod's alignment through the piston.

Ø12 piston rod with plug and Ø3 stinger size chart

partsize
rodØ12 / Ø10 × 260.45
plugØ10 × 8 spigot, Ø12 × 8 head
stingerØ3 × 87.05

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
rod ODØ12piston hub bore Ø12 × 76 (seal and guide)runfpse-displacer-rod*
rod ODØ12leaf B's hub and the collar (M3 grub)slidefpse-displacer-rod*
rod ODØ12tube rod bore Ø14 (no contact)designedfpse-displacer-rod*
rod boreØ10plug spigotpressfpse-displacer-rod*
spigotØ10 × 8rod borepressfpse-rod-plug*
stinger socketØ3 × 10stinger, held by an M3 grubslidefpse-rod-plug*
grub holeØ2.5M3 tap drilldesignedfpse-rod-plug*
stingerØ3gland bore Ø3 × 13 (seal)runfpse-stinger*
stinger endsØ3 × 10plug and gas-spring piston socketsslidefpse-stinger*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Proc. IMechE Part ARedlich & Berchowitz (1985), Linear dynamics of free-piston Stirling enginesPDFjournal; method cited verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
fpse-displacer-rod-12x10displacer rod: tube Ø12 / Ø10 × 260.45: through leaf B's hub and the piston's hub bore (running fit)STEP · STL
fpse-rod-plug-12rod plug: Ø10 × 8 spigot into the rod's top, Ø12 × 8 head with a Ø3 × 10 stinger socket and an M3 tapped radial hole (Ø2.5)STEP · STL
fpse-stinger-3x87.05stinger: Ø3 × 87.05: rod plug to the gas-spring piston, through the glandSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=piston-rod-12mm-stinger

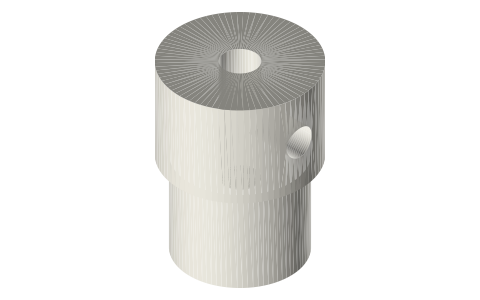

Ø12 piston rod with plug and Ø3 stinger, isometric render of a generated part
Render of fpse-rod-plug-12 from the free STEP; not to scale.

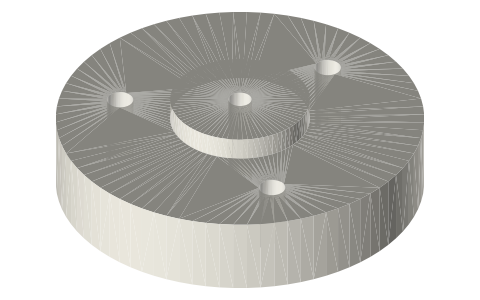

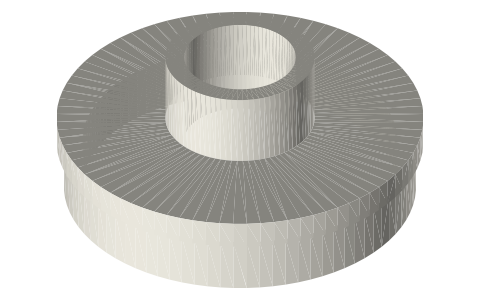

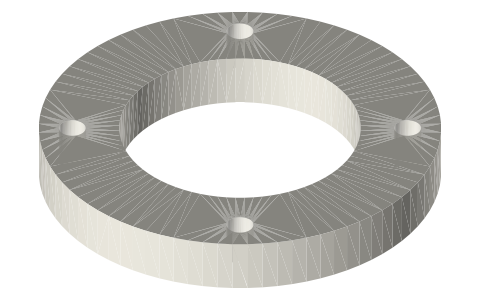

Fits with

Questions

Why a stinger?

The rod is guided by the piston's bore and the gas-spring piston by its own cylinder, in a different spool; a slender link between them carries the spring force without forcing the two guides into line.
