Sealed hollow piston Ø39.4 with cap for a 2 in tri-clamp bore

What sealed hollow piston fits a 40 mm bore? · Hardware · basis: Design values of the free-piston generator; collapse margin from the thin-tube buckling relation p = 2E/(1 − ν²)·(t/D)³ at E 200 GPa (assumed)

Also called: free piston displacer, sealed displacer stirling, pressurised stirling displacer

Used in Long Earth Society builds. Stirling engine displacer build (8" × 6"), aluminum flashing · Stirling engine displacer build (full walkthrough) · Designing a displacer for a 3-foot free-piston Stirling engine

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • Ø39.4 shell, 0.8 wall, 209.9 long with its cap: it reaches from the bottom of the hot spool (the expansion space under it) through joint A into the 3 in cooler spool, where its cold face meets the compression space under leaf B.

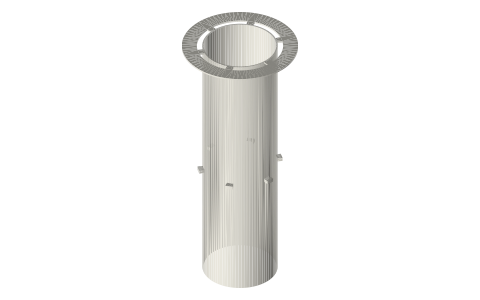

  • It runs with a designed 0.30 radial gap in the liner and the cooler insert, never touching: leaf B at joint B holds its cold end on the axis and the rod's gland holds the other end of the rod.
  • Sealed with the gas it was assembled in. Thin-tube collapse pressure of the shell: about 37 bar for a wall of modulus 200 GPa, against 16 bar absolute at the relief setting; the cap's flange takes the end load on the shell's rim.
  • Moving mass with its rod, plug, stinger and gas-spring piston: 365 g (at 7.9 g/cm³).

Sealed hollow piston Ø39.4 with cap for a 2 in tri-clamp bore size chart

partsize
shellØ39.4 × 206.9, wall 0.8
capspigot Ø37.8, flange Ø39.4 × 3, boss Ø16 × 8
gap0.30 radial (designed)
travel±6 room, ±4.48 at the design point

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
shell ODØ39.4liner and cooler-insert bores Ø40.00 (0.30 radial gap)designedfpse-displacer-shell*
shell boreØ37.8cap spigot (sealed joint)pressfpse-displacer-shell*
spigotØ37.8 × 6shell bore (sealed joint)pressfpse-displacer-cap*
rod socketØ12 × 14displacer rod Ø12pressfpse-displacer-cap*
boss top faceØ16leaf B's hub, clamped by the collarclampfpse-displacer-cap*

Where the files are
