2 in tri-clamp inner liner, Ø40 bore, rim clamped in the joint

What liner gives a 2 inch tri-clamp spool a 40 mm inner bore? · Hardware · basis: Design values of the free-piston generator: displacer bore Ø40.00 (0.30 radial gap to the Ø39.4 displacer), regenerator annulus Ø41.5–Ø47.5, rim at the ISO 2852 flange diameter

Also called: displacer liner stirling, free piston displacer cylinder, regenerator inner wall

Long Earth Society build part. The displacer's cylinder in my free-piston generator. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
5 in table

Notes

  • It hangs from joint A: its Ø64 × 0.8 rim is clamped between two half gaskets exactly like the flexure leaves, so it is centred by the clamp and sealed by the gaskets; six windows in the rim over r 20.75–23.75 let the gas from the regenerator through to the cooler.
  • The tube (Ø40 bore, 0.75 wall) is the regenerator's inner wall and the displacer's bore, from 5 mm above the outer bottom (the gas turns under its end) to the joint.
  • Six 10° spokes 2 thick at 73.05–75.05 mm carry the 389 screen rings and centre the tube in the bore; below them the heater insert slides onto the tube from the bottom (optional).
  • Fits: bore Ø40 is the displacer's designed 0.30 gap (no contact); spokes and rim OD locate in the Ø47.5 bore and the clamp; the rim is clamped.

2 in tri-clamp inner liner, Ø40 bore, rim clamped in the joint size chart

featurevalue
boreØ40.00 (displacer gap 0.30)
tube OD41.5
rimØ64 × 0.8, 6 windows
spokes6 × 10°, 2 thick, z 73.05–75.05
bottom endz 5 (2 above the floor)

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
boreØ40.00displacer Ø39.4 (0.30 radial gap, no contact)designedall
rimØ64 × 0.8two half gaskets in joint A; centred on the flange rims by the clampclampall
spoke tipsØ47.5hot spool boreslideall
tube ODØ41.5heater insert borepressall
tube ODØ41.5regenerator ring boresslideall
bottom end2 above the closed endgas passage (no contact)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Ohio University (Urieli)Stirling cycle machine analysis: ideal adiabatic and simple analysis (after Urieli & Berchowitz, Stirling Cycle Engine Analysis, 1984)webauthor's site
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
fpse-liner-40-rim64displacer liner: tube Ø40 / Ø41.5 from 5 above S1's outer bottom to the rim; six 10° spokes 2 thick under the regenerator (z 73.05–75.05) out to Ø47.5; rim Ø64 × 0.8 clamped in joint A with six windows over the regenerator annulusSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-inner-liner-40-bore

2 in tri-clamp inner liner, Ø40 bore, rim clamped in the joint, isometric render of a generated part
Render of fpse-liner-40-rim64 from the free STEP; not to scale.

Fits with

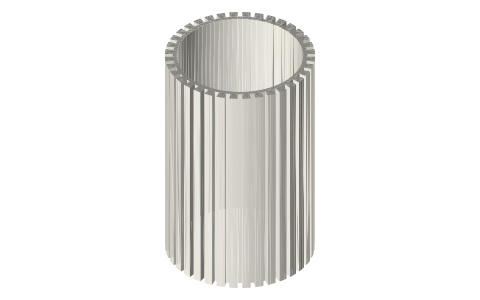

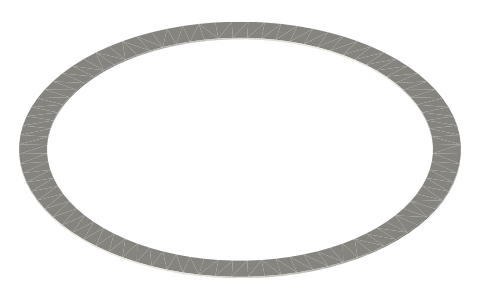

Questions

Why is the liner clamped in the joint?

The joint centres it on the vessel's axis as accurately as the clamp centres the two spools, and the gaskets seal over it; nothing needs fixing inside the hot end.
