Plate cam, simple harmonic rise 12 mm, base circle R20, for a knife-edge follower
What profile does a simple harmonic plate cam have? · Modern device · basis: Xem Studio design following Brown's figure (1868); true size, no printing allowance
Also called: harmonic cam, plate cam, disc cam, knife-edge cam, leva de disco, Kurvenscheibe
Exact dimensions. True size, with no tolerance added.
- length
- 53.71 mm
- width
- 52.0 mm
- height
- 6.0 mm
Notes

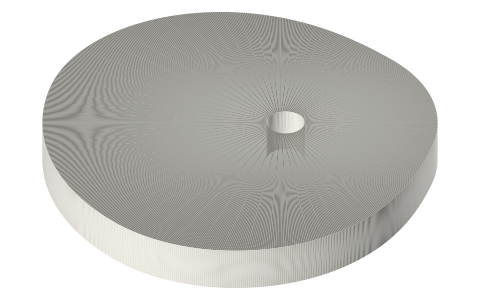

- Disc cam (6 mm, Ø5 bore) for a radial knife-edge follower on a 20 mm base circle: rise 12 mm over 120° with simple harmonic motion, dwell 60°, return over 120°, dwell 60°.
- Profile computed point by point (720 points) from the displacement law: the knife-edge touches the pitch curve itself.
- Xem Studio design following Brown's figure; true size, no printing allowance (apply your own to the mating features).
Plate cam, simple harmonic rise 12 mm, base circle R20, for a… size chart
| dimension | value |
|---|---|
| base circle | R20 |
| rise | 12 mm over 120° |
| dwells | 60° high, 60° low |
| law | simple harmonic |
| bore | Ø5 |
| thickness | 6 mm |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 136: figure, his text and an animation | web | Publisher's page; dimensions are facts |
| Xem Studio | drawing | web | Publisher's page; dimensions are facts |
